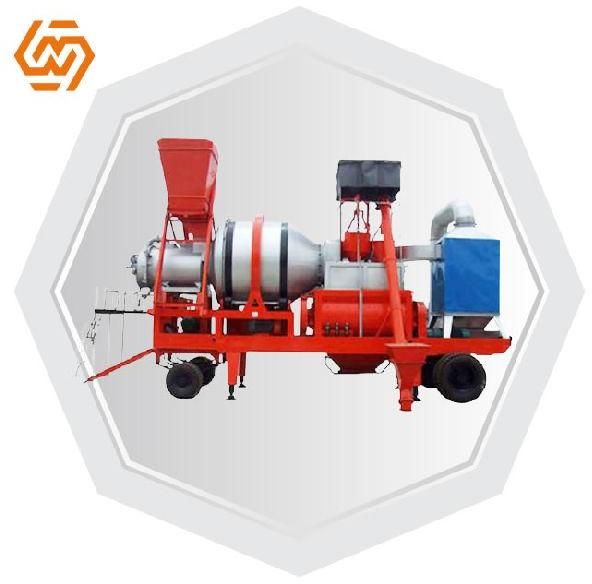

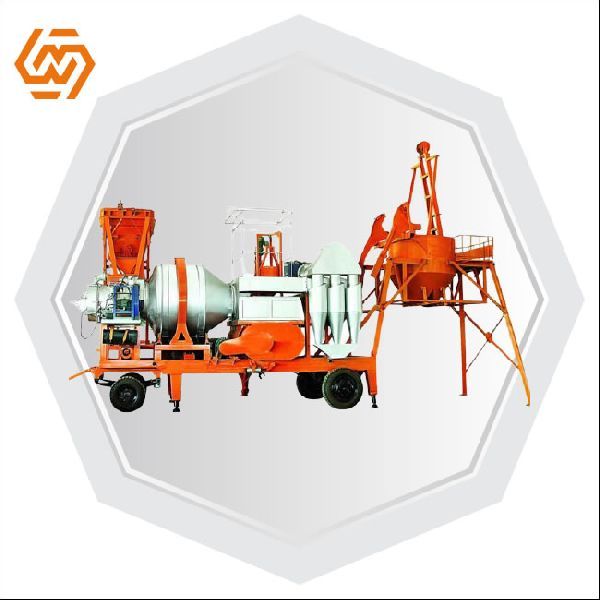

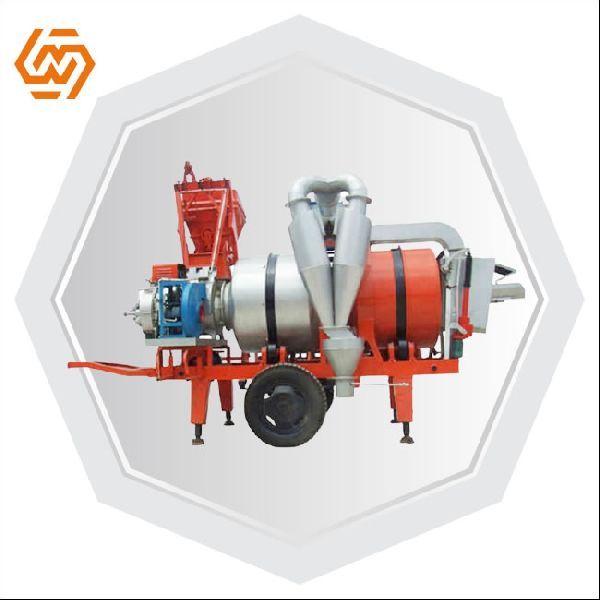

Asphalt Mixing Plant, Power : 41KW

High Quality Mini Asphalt Mixer for Road Construction Engineering

This asphalt batching plant is a new brand with small mixer which can move. It can mix up various kind of black blend. It is different from the common drum mixer, whose unique central reversal feeding device, enable this machine to have the simple structure, high efficiency, low energy cost and sweet movement.

1.Integrated design of drying and mixing in drum, reduce initiate cost for clients;
2.Simple structure, easy operation, drying while drum rotate in counter clockwise direction (from burner), discharging while drum rotates in clockwise direction (from burner), and the wind are swirled in the center of the drum;
3.PLC control, touch screen, auto/manual switchable;
4.Towing chassis of easy transport and installation;
5.Burner is available for coal and oil, at client's option;
6.Stable and reliable, easy for maintenance.
Type
SLB-8
SLB-10
SLB-15
SLB-20
SLB-30
Capacity
8t/h
10t/h
15t/h
20t/h
30t/h
power
Oil
23.7kw
24.3kw
33kw
46.5kw
60kw
Coal
40kw
41kw
54kw
70kw
90.3kw
Product Tempreture
120-180℃,Adjustable
Fuel Comsuption
Oil:5~7.5kg/t
Coal:13~15kg/t
Optional
Aggregate,Batcher,Storage bin,Coal miller,Wet filter,Bag House,Control room,Bitumen heating tank
