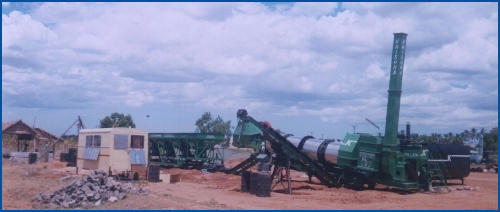

| 1. COLD AGGREGATE FEEDER UNIT |
| It consists of TWO independent top open type bins having total 25 tons capacity being fabricated from MS plate mounted on rigid Channel supported on channel. Each bin consists of an independent opening for feeding the aggregate with adjustable bin manual gate. Each bin deposits pre-determined aggregate via auxiliary belt on Gathering belt fitted underneath, which is driven by 03 HP A.C. Motor. A continuous type electronic load cell mounted on gathering conveyor for accurate feeding of aggregate into dryer via Slinger (cold) belt conveyor. |
| 2. DRYING & MIXING UNIT |
| KEW-35+ Single Drum flight Rotor Type, Drying & Mixing shell 1000 mm Dia and 4000 mm long made out of 08 mm MS plate Full shell driven by 10 HP AC motor coupled with reputed make reduction gear box. Drum rotating speed will be 12/14 RPM. Built-in Multi Cone Dust Collector having manual dust outlet, system controls the dust to contain / recycle permissible fines; it is capable of preventing the exhaust of fine dust in atmosphere for environmental control resulting into less polluted plant. Exhaust blower having balanced ID fan having 10 HP AC Motor and high Chimney, aggregate heated by Hi-Lo Pressure Jet type Electronic Burner having fuel consumption 175/200-liters/Hr maxi. The DM unit fitted on robust & sturdy chassis made out of Heavy I Beams with perfectly aligned and correct distance for dryer chain to rotate without any extra efforts. |
| 3. ASPHALT TANK |
| Insulated with glass wool having 10-ton capacity with direct-fired heating method thru light oil auto burner electric ignition. Variable speed 03 HP D C. drive for pump to synchronize with dry aggregate flow rate to produce mix conforming to design mix at all loads, thermostatic control to control the burner to maintain at pre-set asphalt temp. |
| 4. LOADOUT (HOT) CONVEYOR |
| Hot mixed material conveyed from chamber of drum will be discharged into hydraulic storage hopper fitted at discharged end of conveyor driven by 05 HP AC motor coupled with SMSR gearbox. The Hydraulic dual gate hopper opened via Cylinder powered by a compact power packed and the operation is automatic duly controlled from AC Panel. Hopper consist scrapper for cleaning the load-out belt properly and assuring falling hot-mixed material in to hopper. |
