Asphalt Pavers

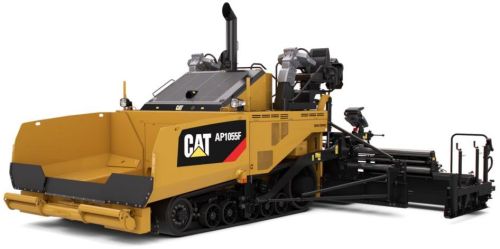

The AP1055F is a high-production, rubber track paver that excels on airports runways, interstates, highways, and other large jobsites. It's high travel speed, flotation, and traction deliver superb mobility.
Efficient power management and advanced Eco-mode optimize fuel efficiency and lower sound levels.
Eco-mode
Eco-mode utilizes an engine speed of 1650 rpm and reduces fuel burn by up to 5% over Cat E-series pavers while also lowering sound levels even more.
Cat C7.1 Engine
The C7.1 engine provides 168 kW (225 hp) and meets U.S. EPA Tier 4 Final and EU Stage IV emmision standards.
Automatic Engine Speed Control
When automatic engine speed control is activated, the engine speed is reduced to an idle speed of 1000 rpm when the propel lever is moved to neutral or to 1300 rpm when screed heat is active.
Advanced Eco-mode
Eco-mode and automatic engine speed control when activated together modify the engine rpm based on load factors. When activated the engine will operate at 1650 rpm when paving. If the upper power threshold is exceeded, the engine speed will increase to 2200 rpm and remain there until the demand drops below the threshold and remains there for 30 seconds, ensuring reliable performance.
Quick Starter
Exclusive 70 kW integrated generator delivers fast heating screed plates, quiet or quick heating options, and simple monitoring. The system is designed to save time and fuel while providing reliability for the life of the paver. Advanced diagnostics keep the screed heating, even in the event of a sensor failure.
Quiet Heating
Quiet heat mode operates at an engine speed of 1300 rpm and provides screed plate heating in under 15 minutes.
Quick Heating
Quick heating mode provides a heat-up time in under 35 minutes when equipped with the 10 m (33 ft) wide-width paving package.
Temperature Ranges
Three preset heating options provide a wide range of temperatures for various mix designs; Low is 110 degrees C or 230 degrees F, medium is 130 degrees C or 266 degrees F, high is 160 degrees C or 320 degrees F.
