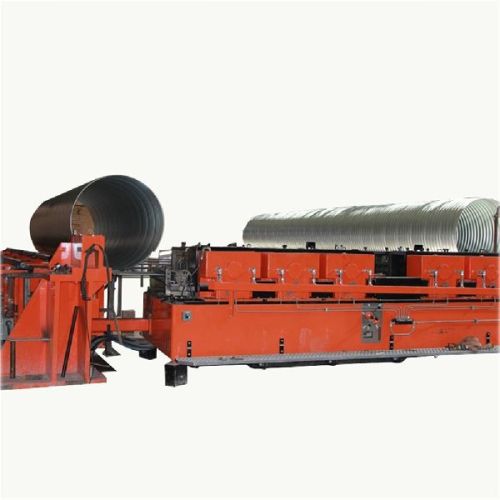

Assembled Corrugated Metal Road Culvert Pipe Forming Machine

The Culvert Pipe Production Line is used to produce the corrugated pipe from galvanized steel sheet via roll forming and coiling process. The finished corrugated steel pipe of Assembled Culvert Pipe Corrugated Panel Machine is widely used for drainage culvert, storm shelter, foundation pit, bridge column, and the underground pipe gallery, etc. Compare to traditional plastic culvert or cement concrete culvert, the spiral corrugated pipe has higher compression strength, longer service life (100 years). And the pipe weight is light compare to normal solution, the installation and maintenance will be easy and high efficient. Our company can supply complete Culvert Pipe Making Machine production lines and machines according to your requirement. We supply many different sizes of corrugated pipe machine with our auxiliary equipment. We have gained a good evaluation from users because of advanced technology, perfect quality and after-sale service. 1. Profile Drawing and Products for Reference 2. Working Flow of Pipe Corrugated Panel Machine Decoiler---- feeding with guide--- Punching---- Roll forming---- Cutting---- Products collecting 3. Corrugated Culvert Pipe Machine Main technical data Pipe diameter 1000-6000mm Pipe length 1-12m Material Galvanized steel strip, 2.0-3.0mm thick, 300mm wide Working speed 1-35m/min, adjustable Spiral pitch 230mm Lock seam Double locked Motor power
