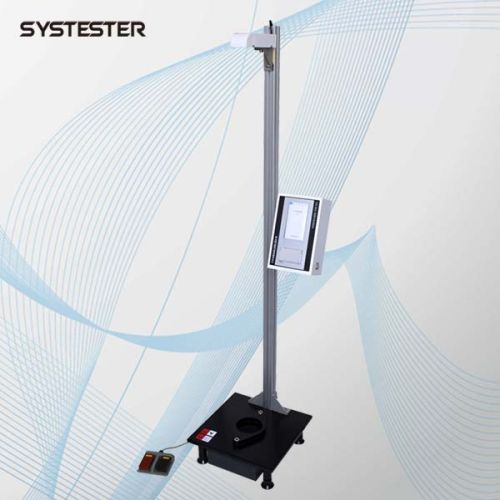

ASTM Standard Falling Dart Impact Tester-, Brand Name : SYSTESTER

ASTM standard falling dart impact tester-----staircase method
ASTM standard falling dart impact testeris used for determining of the energy causes the plastic film or sheets to fail under specified conditions of impact of a free-falling dart.
ASTM standard falling dart impact tester-- Features
1.Patent technology, large size touch screen operation, Micro-printer built- in.
2. High performance pneumatic sample clamp.
3.Foot pedal operation available
4. Foot pedal operation available
5. Falling ball test available.
6. Multiple units & curve results can display.
7. RS232 communication port. (optional)
8. Designed based on various standards.
9. Result statistics.
10. Professional computer software support.(optional)
ASTM standard falling dart impact tester-- Technical indexes
Test method: Method A, method B, others
Dart mass: Method A: 50~ 2000g
Method B: 300~2000g
Unit dimension: Method A: 450mm(L)×450mm(B)×1365mm(H)
Method B: 450mm(L)×450mm(B)×2160mm(H)
Result accuracy 0.1g(J)
Sample clamp Pneumatic
Gas source less than 1.1MPa(provided for yourself)
Sample size not less 150mm*150mm
Power supply AC 220V 50Hz
Net weight 55kg
ASTM standard falling dart impact tester-- Standards
GB 9639、 ASTM D1709、 JIS K7124
ASTM standard falling dart impact tester-- Configuration
Delivery: Method A, foot pedal, touch screen, micro printer
Optional: Method B, professional computer software, communication cable, falling ball test accessories.
