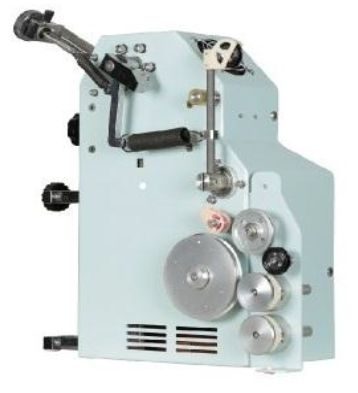

ASV-DF-C15-JA Series AC Servo Tensioner

The ASV-DF series tensioner features a high-speed and high-torque AC servo motor, fast response and an accurate feedback system to provide high speed and quality winding for a medum size wire's tension requirements.

Details : The series operates with AC220V power supply, and comes with two-stage tension setting and wire breakage detection.

Advantages

• Precise, stable and consistent tension control
• Two stage tension setting: simple switching between main tension and second tenson
• Wide tension range
• Simple tension setting

Details

• Weight - 10 kg
• Max Wire travel speed - 15m/s
• Maximum tension – 5000 g
• Selection of Main Tension Spring - 51-1#, 52-2#, 53-3#, 54-4#
• Dimensions - 404mm*357mm*184mm

Requirements

• Power supply - AC 220V
• Compressed air. 5kg/cm²
