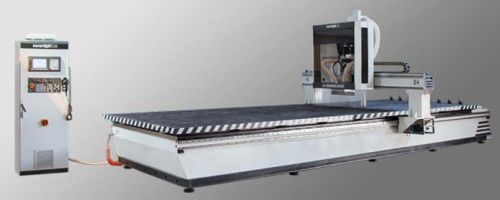

Atc 2136 Double Table CNC Woodworking Machine

₹ 61.20 Lakh / Piece

MOQ1 Piece(s)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are offering atc 2136 double table cnc woodworking machine. Technical information atc 2136 working table x2100 y3660 z350 mm x-y-u servo motors ....

Company Information

Member Since 18 Years
Nature of Business Supplier
Year of Establishment 2003

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering atc 2136 double table cnc woodworking machine.
Technical information atc 2136
working table x2100 y3660 z350 mm
x-y-u servo motors 1 kw 120 - 2000 rpm
z servo motor 1 kw 120 - 2000 rpm
reductor 110 120 backlash ı
y-u guide and lineer bearings 35
x-z guide and lineer bearings 25
moving helical rack and pinion 25x25 mod2 pınyon z 32
z axıs screw moving system 25x5
spindle motor 8.5 kw 24.000 dd hsk 63
vacuum pump - vacuum system 308 m3 hour
control unit - operator panel industrial cnc controller
design program standart 2d (optıonal 3d)
electrical and electronical equipment industrial electrıcal equıpment
automatic tool change click-fit system
x-y axis speeds 60 meter minute
power and air consumption 8 bar - 21.5 kw
