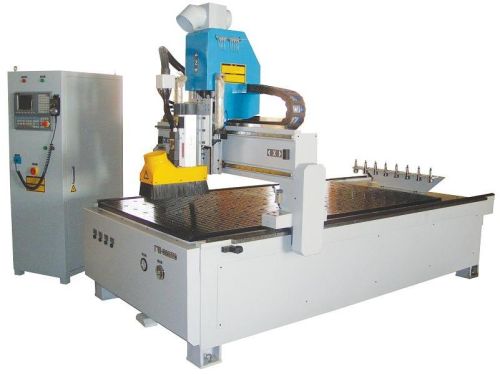

Atc CNC Router, Packaging Type : white

ATC cnc router
1. Main Parameters:
The machine adopts Italy HSD 9kw spindle, automatically change the tools function; Taiwan Delta industrial frequence changer;Taiwan SYNTEC Automatically Change Tool industry CNC control system; Swiss Evermore-ER25 tools handle; Japan Yaskawa servo motor drive; Taiwan PMI square linear guide and precision ball screw; Overall thick wall seamless steel structure welding, the tempering aging treatment of the body, prevent the machine deformation.
2. Features:
1) The machine adopts Taiwan's SYNTEC unique 8 ACT system,the change tools time it is 15 seconds, avoiding tedious manual change the tools, truly realize one mahcine be multi-usage. The system also can accurately adjust the position of the tools tip, allow the machine adjust the processing speed and the cutting speed in dynamic, it is can control multiple levels 3D processing automatically; Intelligent 3D computer cnc control function, truly realize three axis linear linkage,it is can 3D engraving and cutting rapidly and smoothly.
2) This machine effective processing travel is 1300 * 2500 mm,match with vacuum adsorption table structure,division adsorption area clever,to play the highest vacuum pump adsorption ability, convenient customer to fix the board; Also match industry dust collector, to ensure the machine can woking in long time.
3) The machine adopts imported high power automatically ACT spindle, match Taiwan frequency changer , can easily cut 40 mm thick solid board.
4) This machine adopt three axis Taiwan ball screw and linear guide transmission, with Yaskawa servo motor drive, ensure portal rapid movement, uniform, smooth, the engraving speed can arrive 20m/min., another guarantee the machine control of high precision, reach at 0.02 mm.
5) This machine can work for 24 hours continuous, suitable for large and medium-sized enterprise all-day production line, can be use board engraving,cutting, door process engraving, embroidery machine cutting board, Embroidery machine cutting and carved board, Board furniture engraving processing.
3. Other futures:
Fully comply with international standards: Can use any CAD/CAM, anaglyph software.
Import Taiwan CNC control system: Is not common engraving machine with the interface card computer structure
Intelligent protection work of table: To prevent incorrect operation, or software error, may cause damage to the table.
Intelligent processing cross-border protection: Prevent the mechanical collision phenomenon coused by the design layout more than processing wide.
Intelligent processing speed control: Intelligent control processing speed, dull engraving speed and cutting speed, to improve efficiency, and extend the life of cutter, improve the yield.
Easy operation: simple, convenient, easy operation, can quickly learn the the operation methods.
Potal movement structure: work table is fixed, which can be processing material arbitrary.
PARAMETER:
NO. Technical data GF-1325-ACT
1 Working area 1220*2440*200mm
2 Machining accuracy +-0.05mm/M
3 Structure of the working table Elect-wood vacuum-suck
4 Transmission System XY AXIS Taiwan AMT liner guider + Germany ALTANTA rack
Z AXIS TAIWAN linear guider PMI ball screw
6 AC Tools Quantity 8 pcs
7 Max. speed 45000mm/min
8 Max. working speed 20000mm/min
9 Spindle motor power Italy HSD 8.0KW or GC7.4KW of Columbus
10 The rotating speed 1000-24000r/min
11 Drive system yaskawa or Panasonic inverter-driven servo
12 Operating system Taiwan SYNTEC Industry CNC system
13 Software support Type3,Artcam,Ucancam,Caxa,
14 Dust collecting performance 3300m3/h,3kw
15 Air consumption 330L/min
16 Working voltage AC380V/50Hz-60Hz
17 Lubrication system Manual switch
18 The system of the sword Sword
19 Power consumption 15KW/30A
20 Overall Size 2000×3200×1750mm
21 Weight 2300KG
22 Work environment Temperature:-10°C～40°C, Relative humidity:30%～75%
23 Production time 20 days
