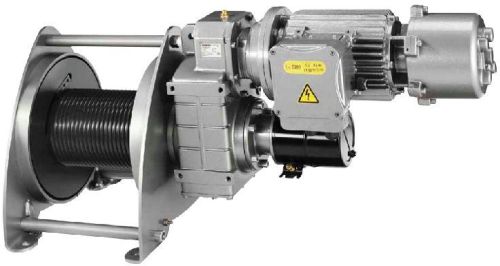

ATEX ELECTRIC WINCHES

Capacity 320 - 7500 kg

Electric winches of the series BETA-EX are designed according to the EU Directives 94/9/EG and MRL 2006/42/EG. The models are usable in any place, where the risk of ignition of explosive atmosphere exists (Mixture of air, gases, fumes and dust/air-mixture, respectively). Due to a specially-tailored modular system, the suitable winch for each individual application can be put together easily. The BETA-EX is characterized by the excellent workmanship in connection with the reliable and stable gear motors

• Electric control incorporated in a flame-proof housing Ex II 2 GD de IIB T4 T 135 °C
• Electric control not ATEX-compliant (Mounting outside of ATEX-area)
• Hand-actuated auxiliary switch in ATEX-design with Up/Down and emergency stop for an enhanced operating safety.
• From a load capacity of 1000 kg equipped as standard with an overload protection.
• Standard operating voltage: Euro-voltage 380 - 420 V, 3-phase, 50 Hz
• Insulation class F
• Grooved drum and one rope fixation on each flanged wheel
• Suitable ambient temperature -20 °C up to +40 °C.

Chemical or petrochemical industry, biogas plants, paint shops

• Different ambient temperatures
• Different operating voltages
• Electric overload protection for winches with a load capacity below 1000 kg
• Infinitely variable speed regulation
• Rope pressure drum
• Slack rope switch
• Gear limit switch
• Special surface coating
• Multi compartment drum or drum extensions for a higher rope capacity.
• Sheaves, pulley blocks (ATEX-compliant Ex II 2 GD IIB T4 135 °C IP 65).
• Special ropes for ATEX-areas with copper-plated load hook.
