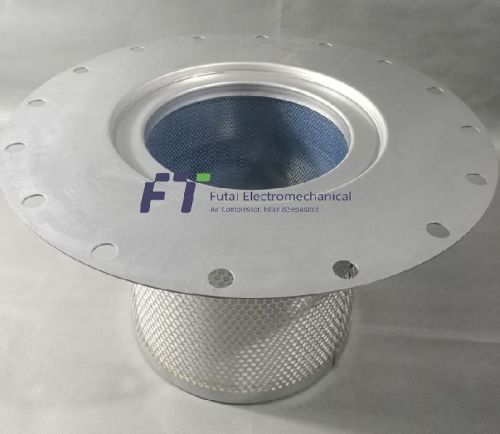

Fiber Glass Atlas Copco Air Oil Separator 1614905600 for Industry

Short info:
working time >4000 h
initial pressure difference
residual oil amount
model no.: 1614 9056 00, 2906 0565 00
standard component: standard component
category: oil separator
micro: 0.1um
separation mode: filter type
pressure: low pressure
trademark: qingdao futai
specification: 84*36*36
hs code: 8421999000
customized: non-customized
material: fiber glass
object: fertilizer
installation: vertical
distillation equipment type: steam distillation equipment
application: industry
transport package: neutral packing or customized
origin: china
product description
replacement atlas copco compressor air oil separator 1614905600, 2906056500
1.filtering precision:0. 1 micron .
2.oil contained in compressed is below 3ppm.
3.filtration efficiency:99.99%.
4.service life is approximately 4000h.
5.initial pressure differential less than 0.02mpa.
6.filter element of air oil separator is made by the thin fiberglass,which imported from germany hv company.
7. Structure: the outer is metal nets, inside is high densite fiber glass and gas separation material, most inside is the metal nets, flange connection with sealing ring.
The consequences for air oil separator filter extended use:
1. Separation efficiency is poor, resulting in increased fuel consumption, increased operating costs, lack of oil serious may even lead to host failure;
2. Compressed air outlet oil content increases, affecting the back-end purification equipment, resulting in gas equipment can not work;
3. After the blockage increases, leading to the actual unit discharge pressure increases, increasing energy consumption;
4. Oil gas separation filter run time is too long , the glass fiber material may falling into the oil, resulting in shortened life of the oil filter.
