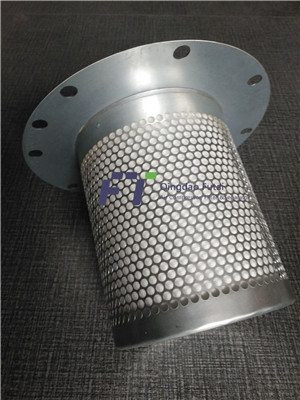

Atlas Copco Air Oil Separator 2901056622

short info:
working time >4000 h
initial pressure difference
residual oil amount
model no.: 2901 0566 22
specification: 84*36*36
material: fiber glass
micro: 0.1um
pressure: low pressure
installation: vertical
origin: china
distillation equipment type: steam distillation equipment
application: industry
separation mode: filter type
category: oil separator
standard component: standard component
trademark: qingdao futai
hs code: 8421999000
customized: non-customized
object: fertilizer
transport package: neutral packing or customized
product description:
replacement atlas copco compressor air oil separator 1622365600, 2901056622
1.filtering precision:0. 1 micron .
2.oil contained in compressed is below 3ppm.
3.filtration efficiency:99.99%.
4.service life is approximately 5000h-8000h.
5.initial pressure differential less than 0.02mpa.
6.filter element of air oil separator is made by the thin fiberglass,which imported from germany hv company.
7. structure: the outer is metal nets, inside is high densite fiber glass and gas separation material, most inside is the metal nets, flange connection with sealing ring.
