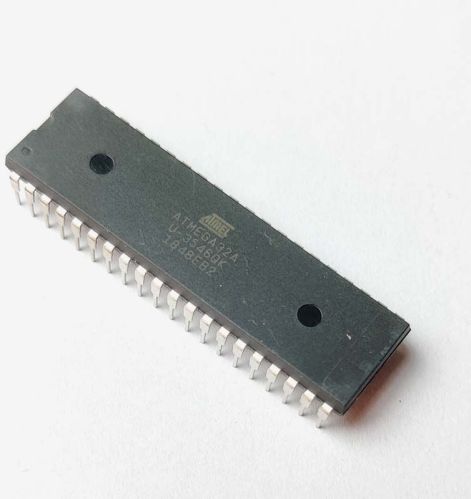

ATmega32A Microcontroller

ATMEGA32A is featuring 32KB self-programming flash program memory in it’s 40 pin, 8-bit AVR RISC-based microcontroller from Atmel. It is a low power yet high performance microcontroller that has 2KB SRAM, 1KB EEPROM, 8 channel 10-bit Analog to Digital converter. For the debugging and programming support, JTAG interface and an on-chip-debugger is also available in this microcontroller unit. The device achieves 16 MIPS throughput at 16 MHz at 2.7-5.5V operation.
2.7V-5.5V opens up a wide range of input voltage range that is suitable for both 3.3V and 5.5V operations. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, allowing you to optimize power consumption versus processing speed.
Additional peripheral supports are - 32 x 8 I/O registers, UART, I2C and SPI interface, PWM, Timers etc.
Operating Voltage: 2.7V to 5V
Advanced RISC Architecture.
32 x 8 General Purpose Working Registers.
Fully Static Operation.
Up to 16 MIPS Throughput at 16 MHz
On-chip 2-cycle Multiplier.
High Endurance Non-volatile Memory segments.
32 Kbytes of In-System Self-programmable Flash program memory.
1024 Bytes EEPROM.
2 Kbyte Internal SRAM.
Write/Erase Cycles: 10,000 Flash/100,000 EEPROM.
Data retention: 20 years at 85°C/100 years at 25°C(1).
Optional Boot Code Section with Independent Lock Bits.
In-System Programming by On-chip Boot Program.
True Read-While-Write Operation.
Programming Lock for Software Security.
Extensive On-chip Debug Support.
8 Single-ended Channels.
Byte-oriented Two-wire Serial Interface.
Programmable Serial USART.
Master/Slave SPI Serial Interface.
Programmable Watchdog Timer with Separate On-chip Oscillator.
