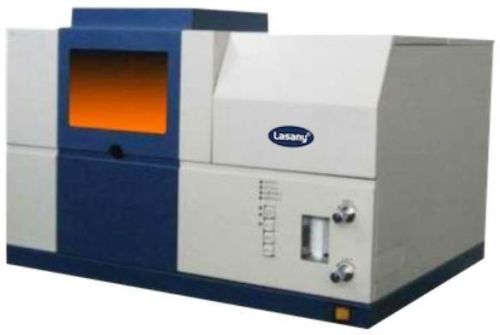

Lasany Atomic Absorption Spectrophotometer

Get Latest Price

Brand NameLasany
Wavelength Range190-900
Wavelength Accuracy±0.2
MonochromatorAberration Corrected Czerny-Turner
Supply TypeExporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Jashbin Enterprises

Somwar Peth, Pune, Maharashtra

4.5/5

(18)

View Number

Member Since 9 Years
Nature of Business Trader
GST No. 27AABFJ1118P1ZA

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Wavelength Range190-900
Wavelength Accuracy±0.2
Brand NameLasany
Instrument TypeSingle Beam Reflection Achromatic Optics System
MonochromatorAberration Corrected Czerny-Turner
ModelLI-5310

SALIENT FEATURES

Advance technology for intelligent stray light measure and correction
Original Optical Noise Reduction & Automatic measurement and stray light dynamic detected without any reference materials and incremental cost. It improves instrument’s optical performance, optical precision, linear range and background correction effectively
Develop internal lamp control technology. It makes normal hallow cathode lamps self-absorption background correction possible without and influence to instrument's stability. Meanwhile it will prolong working life of the lamps. Normal hallow cathode lamps are highly economical than special lamps
Original ''Hg lamp-regent'' gradient measurement. we established an exact mathematical model to estimate “single beam linear and balance "specification. This technology provided a fast and
economic method for instrument self testing system. It also established a brand new method to improve instrument's detection Performance.
Numerous technological innovation and renewal such as design aesthetics, element lamp multi dimensional automatic adjustment system, gas path electronics functional and modular design, No-adjustment D-lamp holder and so on.

OPTIONS:

Graphite Furnace
Auto-Sampler for Graphite Furnace
Hydride Generator
Wide range of Hollow-Cathode Lamps(Single/Multi Element)

Specifications

Optical System	Instrument Type	Single Beam Reflection Achromatic Optics System
	Monochromator	Aberration Corrected Czerny-Turner
	Dispersion elements	Grating system 1200 line/mm characterization area 40mm2 Scintillation wavelength 250nm
	Bandwidth	0.1,0.2,0.4,1nm(4 step auto switching)
	WL Range	190-900
	WL Accuracy	±0.2
	WL Repeatability	±0.1 nm max
	Resolution	Min 3 lines (279.5 & 279.8 peak and Valley )
	HCL housing	Standard 4 lamp turret . ( 1 for measurement , 3 in warm-up mode ) Option :- 6 Lamp / 8 Lamp Turret .
	Gas control	Automatic control & optimization (flow/pressure)
	Safety measures	Gas Leak check, prevention of gas release when flame dies out, prevention of flashback through pressure monitoring.
Photometric properties	Measurement	Aberration-corrected Czerny-Turner mounting
	Photometric Range	0-125%, -0.1-3.00A
	Static Baseline Drift	(Cu) +-0.003A/30min
	Dynamic Baseline Drift	(Cu) +-0.006A/30min
	Background Correction	High speed self-reversal (BGC-SR) method: High speed D2 lamp method (BGC-D2)
Atomization System
Flame	Characteristic Concentration	(Cu) 0.025 μg/ml max
	Detection limit	(Cu) 0.004 μg/ml max
	Precision	RDS =0.5%
	Burner	Air cooled Titanium
	Nebulizer	High-efficient Nebulizer
	Spray chamber	Anticorrosion material
	Safety measures	Flame fuel gas, power assisted gas abnormal pressure protection
Data Process	Test Manner	Flame , flame emission .
	Concentration	standard curve, standard addition, interpolation
	Times of repetitive	Measurement 1-30 times, Average Value of A&C
	Report Print	parameters, date result
Other	Dimension & Weight (Flame)	700×420×550 mm; 103 kg(approx.)
	Power (Main unit with(Flame)	AC 220 V ±10%, 50 Hz without sharp fluctuations.
	Working Temperature range	10～300C
	Working Humidity range	40%～85%
