Attritor

Get Latest Price

c) S.S.Material304 physically & chemically tested
a) Motor Crompton / Kirloskar / Hindustan
e) PanelElectrical control panel with on, off push buttons and motor safety devices.
d) HardwareT.V.S./G.K.W.S. Unbrako
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Ambica Boiler

Amraiwadi, Ahmedabad, Gujarat

View Number

Member Since 20 Years
Nature of Business Manufacturer
Year of Establishment 1991

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

d) HardwareT.V.S./G.K.W.S. Unbrako
a) Motor Crompton / Kirloskar / Hindustan
c) S.S.Material304 physically & chemically tested
e) PanelElectrical control panel with on, off push buttons and motor safety devices.
b) Gear boxCPEC/RADICON
f) CouplingThe motor will be fitted with fluid coupling.

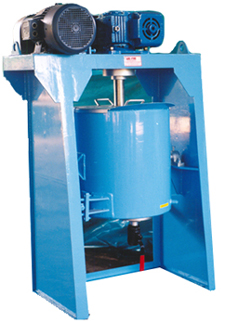

This type of attritor consists of a jacketed vessel with the inner shell made up of S.S.material and the outer Shell made of M.S.Material.The unit will have a discharge at the bottom. The Base of the shell will be made of S.S.304 plate. The rotating shaft will be made from S.S.material having an appropriate diameter and will also consist of 7 cross bars with welded projections. At the bottom the rotating shaft consists of an impeller. All the contact parts i.e.the rotating shaft, the cross bars, the inner shell and the base of the vessel will be made from S.S.304 material.The drive will consist of a Motor of desired HP coupled to a suitable gear box to give a final output between 100~125 rpm.

Range of Equipments :
* Sigma Kneaders	* Ribbon Blenders
* Hydraulic Dissolvers	* Pug Mixers
* Ball Mills	* Planetary Mixers
* Batch type Sand Mills	* Conical Blenders
* Continuous Sand Mills	* Resin Plants
* Bead Mills	* Turnkey Projects
Applications :
* Varnishes & Paints	* Resins, Glues, Adhesives
* Polyurethanes	* Pharmaceuticals
* Colourants	* Chemicals
* Inks	* Lacquers
* Foods	* Cosmetics

Description	ABF 5	ABF 25	ABF 50	ABF 100	ABF 200	ABF 300	ABF 500	ABF 1000
Tank Vol LTS	5	25	50	100	200	300	500	1000
Slurry Vol LTS	2.4	12	24	50	100	145	225	450
Media Kgs	5	24	45	90	180	275	450	900
Motor HP	1	3	5	7.5	15	20	25	50
Agitator RPM	145	130	130	125	110	110	105	105
Fluid Coupling	ABSENT	ABSENT	ABSENT	ABSENT	PRESENT	PRESENT	PRESENT	PRESENT
Floor Space W x D	38 X 80 cms	41 X 86 cms	51 x 103 cms	60 x 136 cms	76 x 159 cms	83 x 170 cms	120 x 210 cms	140 x 235 cms
