Auminum Coating Thickness Meter Cm-8823

MOQ1 Piece(s)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

eddy current: to measure the thickness of non-conductive coating layers on nonferrous substrate Application:used for measuring thickness and corrosion of pressure vessels,chemical....

Company Information

Member Since 12 Years
Nature of Business Supplier
Year of Establishment 2002

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

eddy current: to measure the thickness of non-conductive coating layers on nonferrous substrate
Application:used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.

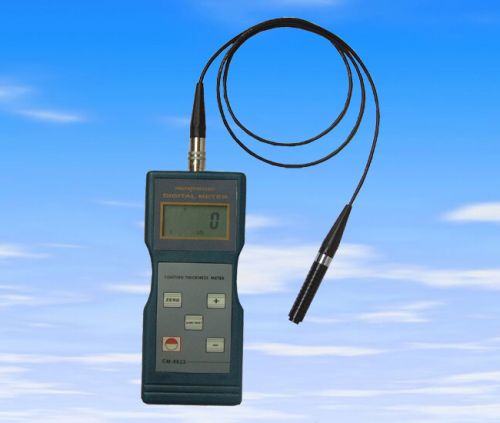

Model: CM8823
Operating principle: eddy current (NF)
Measuring range:0-1000um
Resolution; 0.11
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric imperial: convertible
Power supply: 4x1.5V AA (UM-3)battery
Auto power off
Operating conditions:0-+45℃(32℉-104℉),≤90%RH
Dimensions: 160x68x32mm
weight: 250g(not including battery)
Optional accessories: other range 0-200um to 5000um
