Auto bagging

Listing ID #4380533

Get Latest Price

Machine Type Net Filling
Weighing Range 40-75 kg.
Working Pressure 6 kg/sq. m
Display 9 digit 7-segment LED of 13mm height.
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Machine Type Net Filling
Control Output 5 No.s Potential free relay contacts 230V AC, 2A
Relative Humidity 85% non condensing
Control Input 5 No.s upto Isolated 24 V DC
Accuracy +/-0.25 % of the weighing range.
Power requirement 230 V-15%/+10%, 50 Hz+/-2%
Type of bag Open-mouthed gunny or HPDE bags.
Display 9 digit 7-segment LED of 13mm height.
Operating Temperature 0-45 degree celsius
Data Entry and retrieval Through membrane type key pad.
Weight Sensing By two strain-gauge based load cells.
Weighing Range 40-75 kg.
Bag Clamping By pneumatic clamp.
Serial Interface Through Rs. 485
Material of construction Mild Steel / Powder coated
Working Pressure 6 kg/sq. m
Speed 4-5 bags/ minute
Display resolution 20 g.

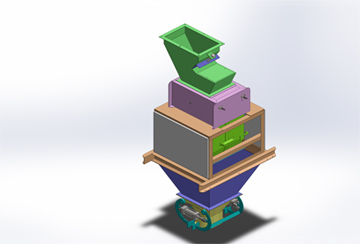

Our bagging machine is designed for automatic filling of material in open mouth bags. The machine is net filling type and in this, material to be bagged is weighed in a weigh hopper and is emptied into bag.
