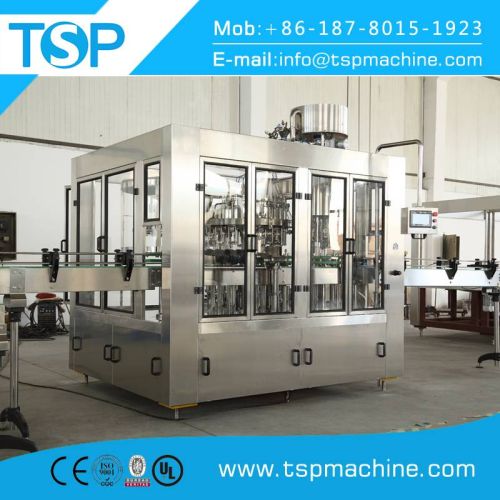

Auto Bottle Filling and Packaging Machinery For Water and Beverage

Characteristic of the whole machine
1. The bottle-necks are cramped and bottles are suspended during the operation process. This avoids many malfunctions caused by thinner bottle body or different highness of bottles. This design also reduce dramatically the required number of changeable parts, make it more convenient and quickly to change to another type of bottles.
2. The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.
3. Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180* along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
4. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
5. Horizon swirl air power caps sorting device is used to avoid damaging the surface of caps, and when there is a shortage of caps in the caps storage tank, an alarm signal will be generated and the caps will be fed automatically.
6. The whole machine is controlled by PLC. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
7. The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently.
8. The frame is made of high quality stainless steel, covered by S. S. 304, the filling valve parts direct contact with water are made
