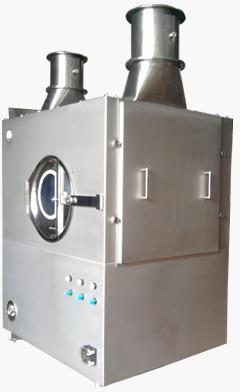

Auto Coater

All the product contact parts are made from Stainless Steel corresponding to 304, Non-contact parts and outer surfaces made from Stainless Steel corresponding to 304, All doors, safety guards and covers are provided with a suitable food grade seals Pan speed 1 to 15 RPM, The pan speed is variable and can be changed from the control panel, Perforated pan with more than 55% opening for better quality finish.
The pan is cylindrical in shape and is made out of stainless steel sheet, The middle portion of the pan is perforated, having 2.5 mm. diameter holes, to enable hot air to enter the pan while in rotation, Tablet discharging facility will be through the special diverter assembly, A stainless steel 304 sink at bottom of pan for collection of powder with necessary stainless steel piping with tri-clover joints for ease of cleaning during the change over,N The coating pan along with the drive system, hot air plenum, exhaust plenum, pan washing sink, washing pipe line etc. are housed in a stainless steel cabinet, Fluorescent Light is provided for illumination in side the pan.
LHS and RHS wall of the machine will be double insulated to prevent the heat lose.
