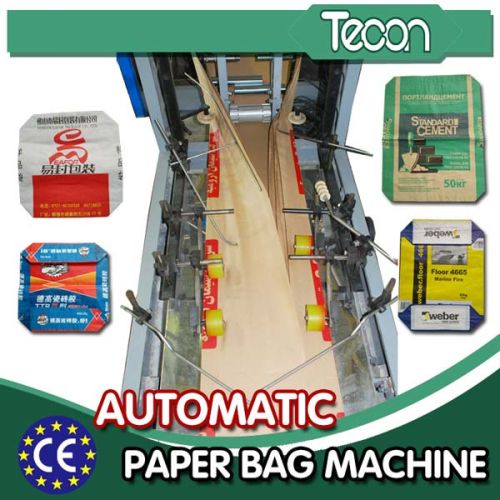

Auto Control Bottom Pasted Paper Bag Machine

Foshan tecon package machinery co. Ltd is a high-tech equipment manufacturer. We designed first production line for paper bag 20 years ago, that is about 1996, and now we are listed in the world top three in this industry and the only one in china able to disign & manufacture the whole production line of bottom sealed paper bag.
The leading product of our company is the "high-speed automatic bottom-pasted bag making machine". It is composed of a tuber machine and a bottomer machine.
features of our full-automatic paper bag production line:
1.flat & glued bottom with filling valve;
2.different types for cement, chemicals, foods, tea, etc.
3.4-color automatic printing
4.2~4 paper layers, with one extra pepp film available
5.35~50 million bagsyear
6.servo system control or plc control available, integrated with photoelectric & pneumatic control system, siemens electrical system
7.full technical service for installation, training and maintenance
8.full solution for factory construction and materials purchase.
Technical parameters of our production line:
hd4916 bottomer machine
operating condition
working hour 22 hoursday
design temperature 0~40
design humidity max. 95%
number required 1 unit
model name hd4916
performance
speed 120 bagsmin(depends on paper quality, number of ply and operators' skill.)
bag length 520~880mm
bag width 420~600 mm
bottom width 90~160mm
bottom open width 200~440mm
distance between bottom centers 420~780mm
valve sheet length 100~300mm
valve sheet width 120~240mm
main drive motor 33kw
total weight 25t
size of whole set 22m*1.8m*1.8m (l*w*h)
valve sheet reel diameter max.1,300mm
if you are interested in our products, please do not hesitate to contact us.
