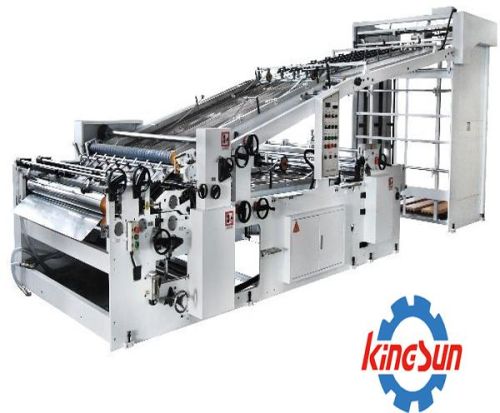

Auto Corrugated Sheet Flute Laminator

We are offering auto corrugated sheet flute laminator.
1. The automatic laminating machine adopting vacuum suction feeding bottom paper. Automatic follow-up and continuous feeding is achieved according to the speed of top paper; surface paper feeding sheet by sheet by manual, it is suitable for laminating the color surface paper and corrugated paper , cardboard and paperboard and so on .after finished paperboard is smooth ,artistic, reduce the waste rate ,and also widely used in household appliances, food, textile and light industrial products packaging
2. Personalized design for top sheet, it is front fed, more convenient feeding, and faster laminating speed.
3. Advanced elastic front register is used for location, high register precision, bottom paper will never exceed. When laminating, it is very easy to make top paper and bottom paper alignment, or top sheet exceeded.
4. Fully automatic glue supply system: the glue will be automatically supplied during lamination, and recovered, avoiding glue wasted.
5. Scientific design for linear speed of metering roller, avoiding glue thrown when high-speed running.
6. Clean the lower roller in gluing section by blade with circulated water; complete cleaning, convenient to replace the blade
7.imported components are used in electrical section to ensure the machine run stably.
8. Use floating movable pressing section is adopted to make the laminated paperboard smooth. This section can be moved front and back to take in paper conveniently.
9. Pressure of impression roller is one-side adjusted by nut of screw lead, convenient and fast.
10. Gear reach is used to control the lift of water tray, which is easily taken out for cleaning.
11. The machine can work with laminating cardboard to a/b/c/d/e corrugated board.
main technical parameter
model
vflh-1300
vflh-1450
vflh-1650
max. Paper size (mm)
1300x1300
1450x1450
1650x1650
min. Paper size (mm)
400x400
400x400
400x400
surface paper weight(gsm)
250-450
250-450
250-450
applicable bottom paper
a,b,c,d,e,f flute corrugated paperboard, thickness less than 8mm
laminating accuracy
2-5mm adjustable
( front gauge accuracy:±1.5mm)
laminating speed (m/min)
72-164
72-164
72-164
surface paper speed (m/min)
10-32
10-32
10-38
working efficiency (pcs/h)
2500-7000
2500-7000
2500-7000
total power (kw)
15
15
18
overall dimension (mm)
13900*2220*2680
14100*2410*2680
15620*2610*2680
weight (kg)
7000
7600
9200
