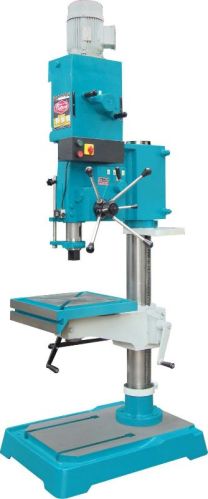

Auto Feed Column Drilling Machine, Packaging Type : Wooden Box, Drilling Capacity : 40mm

Listing ID #4333937

1.80 Lakh / Piece

Get Latest Price

Brand NamePrakash
MaterialMild Steel
FinishingPolished
Driven TypeElectric
Supply Type Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Brand Name Prakash
Material Mild Steel
Finishing Polished
Driven Type Electric
Condition New
Rated Power 1-3kw
Certification ISO 9001:2008 Certified
Packaging Type Wooden Box
Drilling Capacity 40mm
Specialities High Performance, Easy To Operate
Dimension (LxWxH) 880 x 850 x 2300
Type Hole Drilling Machine
Thickness 250mm
Machine Weight 500-600kg
Phase Three Phase
Warranty 1 Year
Accuracy 10-20 Micron
After-Sales Service Provided 100% Yes
Country of Origin India
Drilling Speed 70-1225x9
Operating Mode Automatic
Machine Structure Vertical
Boring Range 80mm
Diameter of Column 130 mm
Column Diameter 130 mm
Minimum Order Quantity 1 Unit
Spindle Hole Taper MT-4
Spindle Autofeed Ranges 0.05 & 0.09 (mm/rev.)
Rough Boring in MS 75
Model No P40AA
Maximum Distance from Spindle Nose to Base 920 mm
Drill Head Motor 1.5 HP/960 RPM
Drilling in CI 45
Drilling in M.S. 40
Table Size 450 x 455 mm
Spindle Center to column 345 mm
Tapping in MS 25
Max Spindle Speed (rpm) 1560
Spindle Travel 250 mm
Spindle Speeds 70-1225 x 9 (RPM x Step)
Automatic Grade Automatic
Diameter of RAM 78 mm
Machine Measurement 850 x 650 x 1850 mm

We are offering Auto feed Column Drilling Machine to our clients.

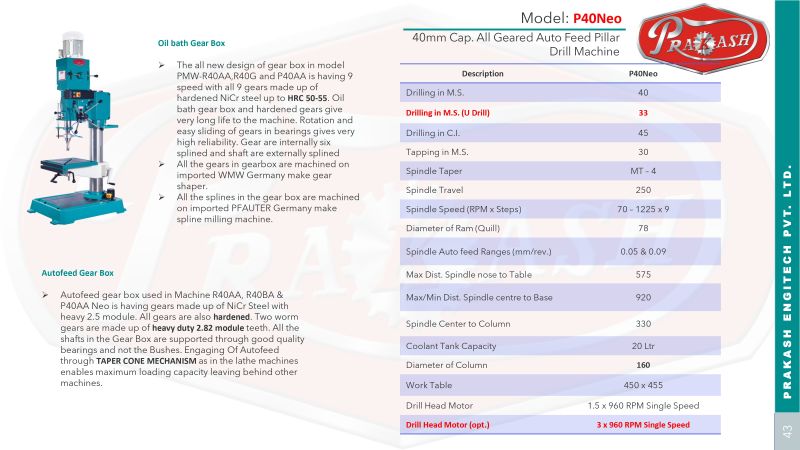

Oil Bath Gear Box:
The all-new design of gearbox in a given model: R40AA, R40G, and P40AA are having 9 speed with all 9 gear made up of hardened NiCr steel up to HRC 50-55. Oil bath gearbox and hardened gear give very long life to the machine. Rotation and easy sliding of gears in very high reliability. Gears are internally six splined and shafts are extremely splined. All the gear in gear box are machined on imported WMW Germany make gear shaper. All the splines in the gear box are machined on imported PFAUTER Germany make spline milling machine.

Autofeed Gear Box:
Autofeed gear box used in Machine R40AA, R40BA & P40AA is having gear made up of NiCr steel having 2.5 module. All gears are also hardened. Two worm gears are made up of heavy duty 2.82 module teeth. All the shaft in the gear box are supported through the good quality bearing and not the bushes. Engaging of Autofeed through taper cone mechanism as in the lathe machines enables maximum loading capacity leaving behind other machine.
