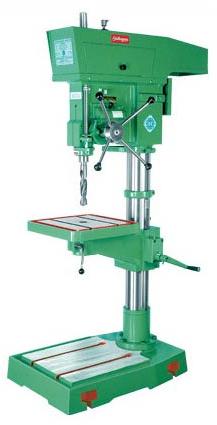

Auto Feed Pillar Drilling Machine

low maintenance cost is the main feature of our auto feed pillar drilling machine that has attracted several prestigious clients. We offer auto feed pillar drilling machine with 40 mm cap. These auto feed pillar drilling machines come with spindle gear box, feed gear box and drill spindle, which are tested against several quality parameters. We offer the auto feed pillar drilling machine in various sizes, standards and designs. The 40 mm cap enables quality material to be fed to the auto feed pillar drilling machine. why our auto feed pillar drilling machine?

• easy to use
• ensures the execution of drilling operations with high precision
• fast drilling functions
• sturdy construction
•          model no. Si-a2  drilling   40 mm   column diameter 130 mm   centre of spindle to column 305 mm   distance of spindle to table 515 mm   distance of spindle to base 1040 mm   spindle nose mt-4   spindle travel 215 mm   range of spindle speed 752070 rpm   no. Of spindle speed 8   range of power feed (2) 0.08 & 0.04   table size 435 x 435 mm   base size (machine area) 490 x 470 mm   overall height with guard 1830 mm   main electrical motor 1.5 hp   shipping case (l x w x h) 140 x 650 x 1950 mm
     standard accessories: motor pulley, fine feed attachments &                       drift key.                    optional accessories: electric motor, reversible                          switch, v-belt, drill chuck, coolant pump with tank &                            fitting.
