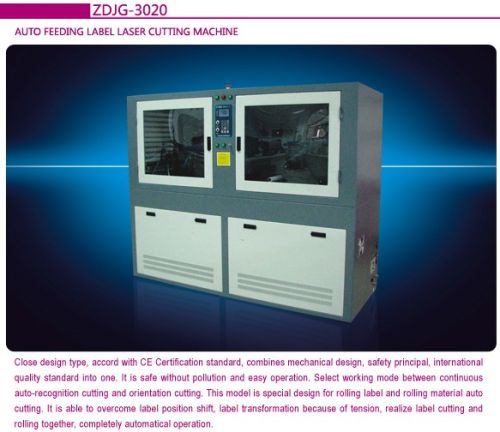

Auto Feeding Label Laser Cutting Machine

Zdjg-3020ld Auto Feeding Label Laser Cutting Machine
product Feature
close Design Type, Accord with Ce Certification Standard, Combines Mechanical Design, Safety Principal, International Quality Standard Into One. It is Safe Without Pollution and Easy Operation. Select Working Mode Between Continuous Auto-recognition Cutting and Orientation Cutting. this Model is Special Design for Rolling Label and Rolling Material Auto Cutting. It is Able to Overcome Label Position Shift, Label Transformation Because of Tension, Realize Label Cutting and Rolling Together, Completely Automatical Operation.
application Field
suitable for Woven Label(textile Brand), Volume Label, Printed Label, Embroidery Label, Electronic Panel, Mask, Cutting After Embroidering of Embroidery and such Multitudinous Industrialisation Application.
technical Parameter
laser Type hermetic and Detached Co2 Laser Tube
laser Power 60w 80w(for Choice)
cutting Area 300mm×200mm
cutting(no-load)speed 0-36000mm/min
ccd Camera Vision Area 230mm×300mm
repeating Location ±0.1mm
moving System online Moving Control System
power Supply ac220v±5% / 50hz
format Support ai, Bmp, Plt, Dxf, Dst Etc
standard Collocation mini Air Compressor, 550w Exhaust
select Collocation high Pressure Blow Magnetic Valve and Control Board,Laser Chiller
*working Area and Laser Power Can Be Customized According to Requirement.*
