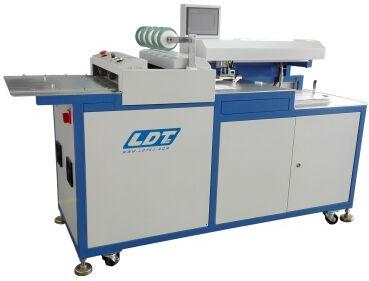

Auto Green Tape Dispensing Machine, Brand Name : LDT

Features：
1.It is mainly used for dispensing the green tape before placing the chips on the inlay sheets. This machine is widely used in producing the contactless cards to save the human power.
2.Applying PLC control and HMI to make operating and maintenance easily.
3.Applying output collector to collect the dispensed sheets orderly.
4.Applying auto collecting system, the material will be placed orderly.
5.Applying stable and long operating life die steel cutter to cut the tape.
6.Applying high accurate sensors to make the feeding, cutting, collecting orderly and stably.
7.Tailor-made is acceptable to adapt to different size of sheets.
Machine Spec：
1.Dimension：L2000×W680×H1350 mm.
2.Weight：Around 250 Kg.
3.Power Source: AC220V 5060 Hz.
4.Power: Around 1KW.
5.Control Method：PLC+HMI.
6.Speed: 900 Sheetshour (Depends on the sheet size).
7.Sheet layout：tailor-made is acceptable.
