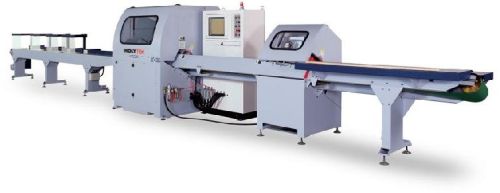

Auto Optimising Cut Off Saws

Company Information

Ask for more detail from the seller

Report incorrect details

ModelSC 230
Cutting thickness12~80 mm.
Elevation motor1/4 HP x 2
Saw arbor diameterØ25.4 mm.
N.W. / G.W.(Approx) 3,100 / 3,550 kgs.
Cutting width30~230 mm.
Saw drive motor10 HP / 7.5 kw.
Outfeed motor1HP / 750 W
Min. Infeed length300 mm.
Spindle speed4800 r.p.m.
Feeding servo motor9.3 HP / 7 kw.
Sawblade diameterØ505 mm.
Cutting rate200 pcs per minute(When the constant cutting length is 100 mm feeding speed is 150 M/min).
Infeed motor2 HP / 1.5 kw.
Min. timber cross section30 x 12 mm.
Dust hood outlet diameterØ125 mm. (5”) x 2

Feature

This machine uses a fluorescent crayon for marking, incorporated with a photocell sensor to detect defective parts automatically
High performance AC servo motor drives the infeed conveyor system, providing precise positioning of the workpiece
Multiple language displays: chinese, English and other languages
Various lengths and quantities of cut can be set as desired. (standard: 12 sizes/option:24 sizes, only for SC-303) data can be memorized
Variety of cutting modes to meet your flexible cutting requirements
Depending on your requirement, a monitor equipment called “far-end system” is optionional
