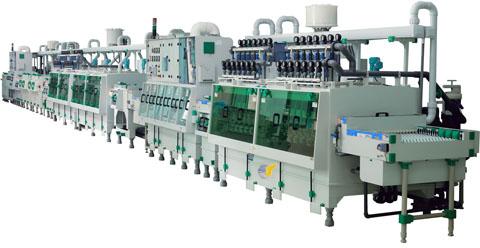

Auto PCB Etching Line

Auto PCB etching line
Main parameters:
Model number: SK9
Power 380V 50Hz
Working width 650mm
Transfer speed 0.5 - 6m/min
Control system PLC panel
Out szie 9860*2600*1850mm
Processing:
Enter → Etching → Washing → Roll drying → Resist stripping → Washing → Roll drying → Wind drying→ Far infrared drying → Out
Features:
1.Accept the touched monitor with PLC matched advanced man-machine interface as controller which more easy to operation
2.Accept corrosion resisting diaphragm gauge individually to control the spraying pressure, control the etching speed from up to down.
3.Top & bottom spraying pipe at etching section use the advanced alternative arrangement style, reduce the transverse distance between each spray nozzle, increase the spraying contact ratio and even, enhance the etching effect obviously.
4.The machine is made of PP plate, which is heat-resistant, corrosion-resistant and strain-resistant.
5.Timely service, one year warranty, life-long maintenance
6.Provide free training for customers in any places.
7.Non-standard sizes can be customized according to different business requirements
8.Environmental friendly
Application:
This PCB etching line is a Acid etching equipments for Printed Circuit Boards etching uses.
