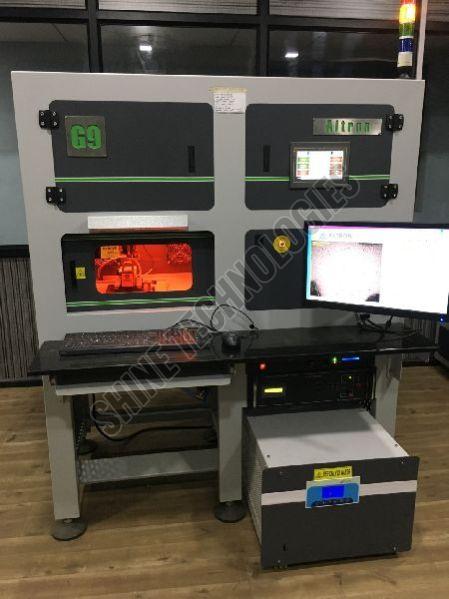

Auto Pi Green Laser Machine

Listing ID #5208135

Auto pi green laser machine is advance machine. There are many facilities available. We can also update any thing as per customer requirement. So customer can call us for this machine facilities and specification.

Specifications : -

Laser System :

• DPSS (nd:yag diode pumped)
• Diode module : northrop
• RBT 50 watt
• 532 mm wavelength
• TEMoo mode
• 1 to 25khz pulse repetition rate

Computer System :

• Intel pentium core processor cpu
• 2 GB ram
• 80 GB hard disk
• Keyboard / mouse
• 17" lcd screen monitor

CNC System :

• 132 x 132 x 70mm axis travel
• 6250 steps/mm resolution
• 2µ accuracy
• Repeatability 3µ / 25µ bidirectional
• Panasonic servo drive

Dimension :

4ft length x 3ft width x sft height

Electronics :

• RF driver
• Single phase power supply
• Common controller

Cooling system :

230v single phase

Sawing Features

• Good quality and stability of the laser beam throughout working range from 8 to 16 watt.
• very low breakage.
• Lowest weight loss.
• Maximum 20 to 22 watt output.
• Chiller with inbuilt compressor
• Highly accurate x-y-z axis servo motor.
• Sawing with bending pie sawing facility available with 360 degree fixture.
• Parameter wise auto frequency set for good quality.
• Auto start light and air it's operate by software key.
• Cutting time spacebar to focus up and down for checking diamond.
• Save current cutting stone and give choice name.
• Cutting time edit stone depth.
• Power failure, restart to pc automatically software restore last cutting data.
• Separates saw file for particular watt.
