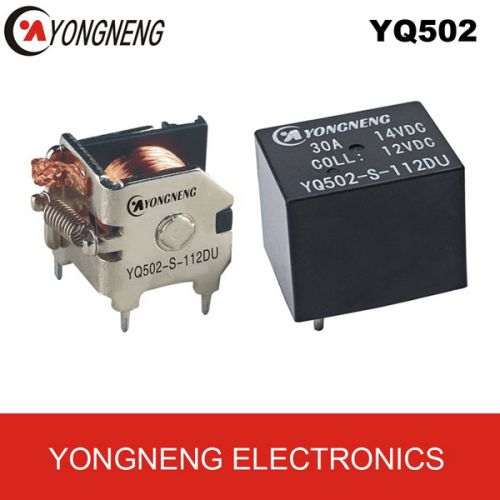

Auto Relay, Brand Name : Yongneng, Packaging Type : Black

We are offering Auto Relay.
item no yq502
contact data
model no. yq502-dm/db yq502-d
contact arrangement 1a, 1b 1c
contact resistance 50mω 50mω
contact material silver alloy silver alloy
contact rating (resistive load) 40a 14vdc n.o./n.c.: 40a/30a 14vdc
max.switching current 40a 40a
max.switching voltage 30vdc 30vdc
max.switching power 560w 560w
mechanical endurance 10000000 ops 10000000 ops
electrical endurance 100000 ops 100000 ops
coil data
nominal coil voltage (vdc) 5,6,9,12,24,48
nominal operating power 1.6w
characteristics
operate time 6ms max.
release time 3ms max.
insulation resistance 500mω max.(500vdc)
dielectirc strength "between open contacts: 500vac, 50/60hz 1min.
Between coil&contacts: 500vac, 50/60hz 1min."
vibration resistance "destructive: 10-55hz, double amplitude of 1.5mm
functional: 10-55hz, double amplitude of 1.5mm"
shock resistance "functional: 10g min.
Destructive: 100g min."
ambient temperature -40c-125c(not condensing)
weight approx.20.0g
