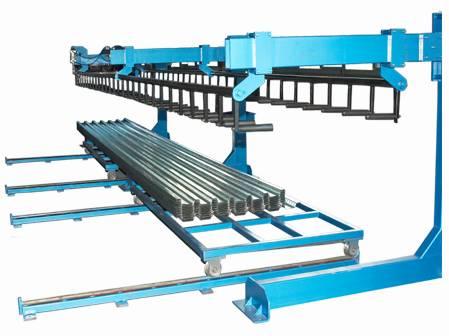

Auto Stacker Machine
Technical Specification of Auto Stacker:
1) Outline dimensions of 6m auto stacker: 5800mmx1800mmx1600mm (6m)
Out line diemensions of 12m auto stacker: 11800mmx2200mmx1500mm
2) Pneumatic system: air pump (air supply power), equipped by user
3) Shift-out electric motor power: 3KW
4) Feeding system: delivering material by transmission shaft. motor power: 2.2KW
5) Storage table: Move between the left and right by gear motor motor power: 2.2KW
6) Electric control system: feeding and blanking material automatically
7) Max. length of feed: 6000mm or 12000mm
8) Gas source:≥ 1M3
9) Stacker type: 6m/12m
10) Thickness: max.300mm
Main Characteristics:
1. adopting the structure of heaps feeder, using electricity or gas, wholly controlled by computer, highly automatic, beautiful outline, advanced structure and reliable performance.
2. With synchronizing transportation and fast ouput it can transport many pieces of profile and the productive effiency is high.
3. The entire productive line is controlled by computer so it is highly automatic.
4. The outline is beautiful, the structure is advanced and the performance is reliable.
