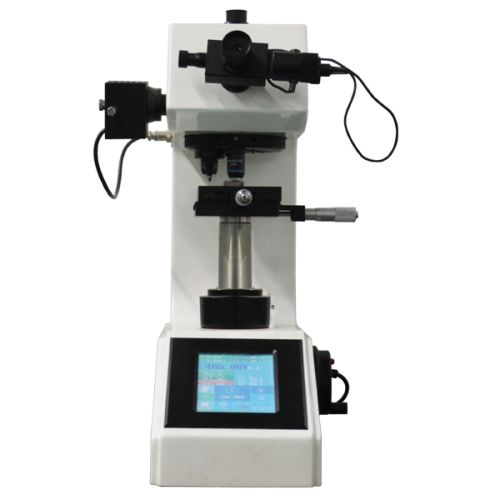

Auto Turret Digital Microvickers Hardness Tester Testing Machine DV-1AT-5.6

Get Latest Price

MOQ1 Set(s)
Brand NameEBP
PowerAC220V, 50Hz
UsageTest Material Hardness
Test Force10, 25, 50, 100, 200, 300, 500, 1000gf
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

EBPu Electromechanical Equipment (Zhejiang) Co., Ltd.

Wenling

View Number

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2017

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Brand NameEBP
PowerAC220V, 50Hz
Test Force10, 25, 50, 100, 200, 300, 500, 1000gf
Hardness ScaleHV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
UsageTest Material Hardness
Magnification10X Digital eyepiece; 10X, 40X Objective lens
Conversion ScaleHRA, HRB, HRC, HBS, HBW, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HK
Dwell time1-99s (unit: 1 second)
X-Y tableSize: 100x100mm; Max. Move range: 25x25mm
IndenterStandard Micro Vickers diamond indenter 136°±0.5°
Data display5.6 inch digital touch screen
LoadingAutomatic loading - dwell - unloading test force
Test space85x115mm (HxD)
Data storageYes, turn-off machine memory will automatic save
Dimensions490*185*515mm

1. Automatic turret, With 5.6 inch touch screen
2. With hardness conversion, and with HV / HK test function
3. With NG-OK judgement function
4. Digital eyepiece with encoder
5. With RS232 interface
6. Self-checking function of turret
