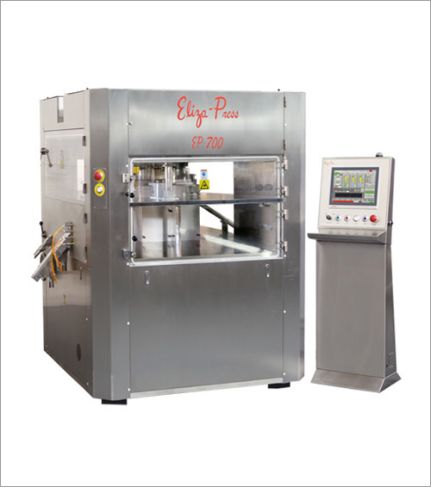

Auto Weight Control Function Tablet Compression Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

EP 700 – AWC Model Auto weight control function by force measurement Servo driven control for Weight, pre thickness and main thickness Ejection and take off force measurement Auto....

View More Details

Send Enquiry

Company Information

Parle Elizabeth Tools Pvt Ltd

Vasai, Mumbai, Maharashtra

View Number

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

EP 700 – AWC Model

Auto weight control function by force measurement
Servo driven control for Weight, pre thickness and main thickness
Ejection and take off force measurement
Auto identification of Fill track
21 CFR part 11 compliance for all function of Panel PC/HMI
Electro magnetic clutch in main drive for smooth startup during full compression load and hand wheel side for easy hand rotation during change over
Minimal dust generation during compression
Auto hard tablet sampling of the 1st layer
Individual Servo motor for fill depth control for 1st and 2nd layer fill depth
Individual servo motor for 1st layer and final tablet compression force control
15'' HMI Panel for Operating the machine

General Specification

Turret with Electroless Nickel Plating for corrosion resistance
Alluminum Hard Anodized force Feeder with Independent ACVFD
Compression rollers tonnage capacity of 100kN/10Tons for Pre and 100kN/10Tons for Main
Tool-less HOPPER Stainless Steel (SS-316) fitment with tri-clover joint with Powder Control Valve
PULL DOWN CAM Alloy Steel (EN353) for reduced dust generation during upper punch entry
'TOOL SAFE' overload system
Direct drive to the turret through a High torque reduction gear box
Discharge Chute with Good, Sample & Reject Tablet Production
