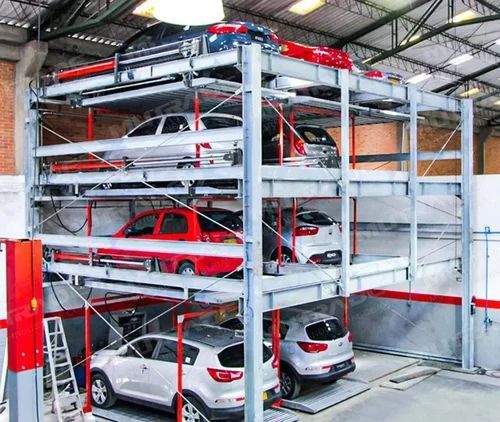

We are a leading Manufacturer, Exporter, and Supplier of the G-1 Hydraulic Puzzle Parking System, proudly certified with ISO 9001:2008. Originating from India, our G-1 (Two-Level) system offers a capacity of 2-6 cars per module, with a lifting capacity of up to 2000-2500 kg per platform and a lifting height of 1800-2100 mm. Safety is paramount with anti-fall protection in place. Experience efficient parking solutions with our innovative G-1 Hydraulic Puzzle Parking System.
| Specification | Details |
|---|---|
| Model | Hydraulic Pit Stack Parking (PDHP G-1) |
| System Dimension | L-5800 X W-7700 X H-2200 X Pit-2200 |
| Car Dimension On G.F | L-5000 X W-2000 X H-2000 |
| Car Dimension In Pit | L-5000 X W-2000 X H-1550 |
| Qty. of Car /System | 05 NOS. |
| Weight | 2000 Kg |
| Inside Pallet Width (G.F LVL) | 2100 MM |
| Inside Pallet Width (G-1 LVL) | 2100 MM |
| Hydraulic Power Pack - Motor | Motor 2 HP (1.5Kw) X 4P |
| Hydraulic Power Pack - Pump | Pump 9-12 LPM |
| Control | PLC |
| Operation | HMI |
| Electric Power | AC 415V X 3Phase X 50 Hz +Earthing |
| Safety Feature | 1) Limit switch 2) Mechanical Lock 3) Sensor 4) RFID |
