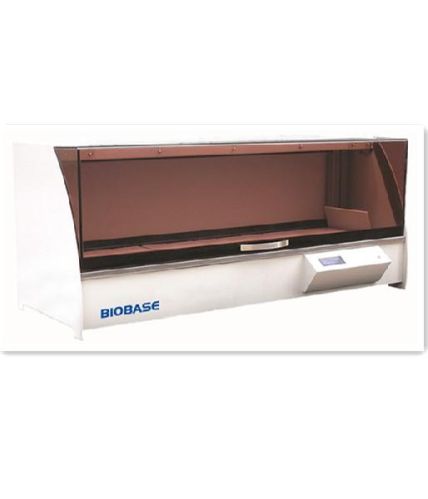

Automated Tissue Processor

Features
fully intelligent design,ensure timely automatic determination and recovery from an abnormal event.
Manual adjustment can be conducted anytime during the programmed automatic operation; afterwards, the system automatically enters the programmed operation.
Green inner-cycling air purification system to efficiently adsorb, and remove, poisonous gas.
Automated fan and light control. (bk-ts3d)
100 or more tissue specimens can be dehydrated at the same time.(bk-ts3d)
internal dry heating mechanism with high-precision temperature control.(bk-ts3d)
model
bk-ts3a
bk-ts3d
number of cups
12
capacity of single cup
1l
1.8l
length of processing time
within 0-99 hours for the first cup (bk-ts3d any length ); 0-24 hours for other cup.
temp.range of paraffin cup
rt - 99°
rt - 80℃
temp.precision
1℃
dripping time
10-60 s
display
lcd
frequency of agitation
2 timesmin
0-6 timesmin
environment temp. Range
0 ~ 40℃
power supply
ac 220v±10% 50hz (standard ); ac110v±10% 60hz
consumption
500w
external size(w*d*h)
1010*420*450 mm
1135*465*490 mm
packing size (w*d*h)
1180*540*560mm
1300*620*640mm
gross weight
90kg
109kg
