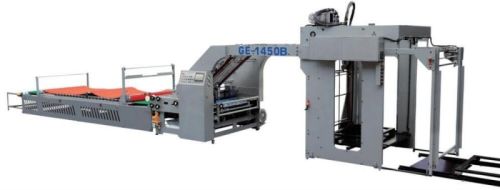

Automatic 3Ply Flute Laminator Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location India only

Upper Paper on Paper System Adopting the latest pre-stacking paper structure which not only supports manually pre-stacking paper, but also pushing up whole sheet of paper directly. Saving....

View More Details

Send Enquiry

Company Information

Subasolutions

Vandalur, Chennai, Tamil Nadu

View Number

Member Since 3 Years
Nature of Business Trader

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Upper Paper on Paper System

Adopting the latest pre-stacking paper structure which not only supports manually pre-stacking paper, but also pushing up whole sheet of paper directly. Saving a huge of labor.
Bottom Paper Feeding System
Adopting servo paper feeding which with high sensitivity and fast speed to ensure bottom paper output smoothly, no paper jams.
Paper Aligning System
Adopting advanced high speed motion control servo tracking system, each sheet calculates separately for the position of front guide and servo automatically tracking compensation to ensure the stability and high precision of the front guide.

Model：		GE-1450B	GE-1450BP
Max. Sheet Size (W×L)：		1450mm * 1300mm
Min. Sheet Size (W×L)：		360mm * 360mm
Sheet Thickness	Bottom paper	250gsm～10mm
	Upper paper	120gsm～700gsm
Max. Working Speed ：		13000 sheets/hour (153M/min) (Depends on paper quality)
Laminating Accuracy：		±1.0mm (Standard Sheet Paper)
Applicable Glue：		Resin adhesive, starch glue and etc.(PH 6～8 will be suitable for laminating glue)
Machine Weight：		7000kg
Dimension (L×W×H):		15.4m × 2.3m × 2.55m
Power：		380VAC/4P
Power		20kw
Applicable Corrugated board		Laminating of A, B, E, F, double corrugated paper and other flat corrugated papers and above 250 gsm cardboard
Auto-adjust of glue amount		NO		YES
Auto-adjust of roller pressure		NO		YES
