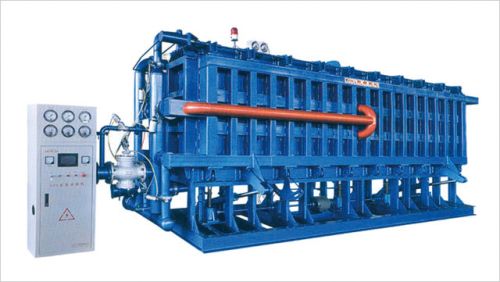

Automatic Adjustable EPS Block Molding Machine

We are offering automatic adjustable eps block molding machine.
Main features:
--- vacuum system of adjustable automatic eps shape machine mainly includes vacuum storage tank, vacuum cooling tank and efficient water ring vacuum pump, etc;
--- welded by high quality profile steel with age heating treatment to ensure the machine high strength & without deformation.it can endure the expansive force of high density products;
--- adopted plc controller (programmable logic controller) and touch screen torealise automatic circulation of mould opening & closing, feeding, heating, heat preservation, vacuum cooling, demoulding and releasing;
--- adopted special aluminum alloy in machine cavity ,high thermal conductivity ,good extension and long lifetime;
--- using overseas advanced through heat molding technique and variable pressureblower for material feeding and cooling.strong penetrating power leads to good bonding effect with less steam,fast forming,low moisture content, guaranteeing products inside and outside the same;
--- equipped with synchronous transmission with wide adjusting range for machine multi-
use;
--- optional sulfide drying bed available.
Technical data:
items unit model psb-q600 psb-q800
mould cavity size mm 6120x1240x630 8160x1280x630
adjustable cavity size (minimum) mm 6120x790x630 8160x930x630
cavity volume m3 4.78 6.58
product density kgm3 6-30 6-30
productivity pieceh 6-10 6-10
vapor pressure mpa 0.6-0.8 0.6-0.8
compressed air inlet diameter mm 80 80
steam inlet diameter mm 150 150
voltage v 380 380
power kw 13 13
maximum dimensions mm 7700x2150x3270 9700x2190x3270
total weight kg 11000 13000
