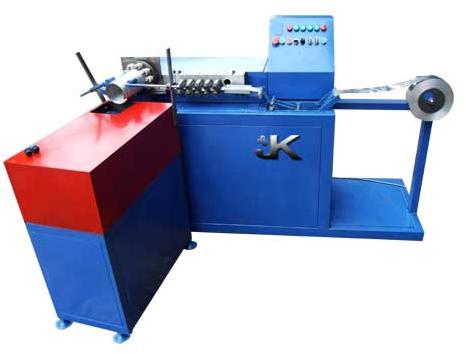

Contact SupplierWe are offering the fully automatic aluminum duct machine, with auto cutting, auto compressing is available. The fixed moulds design make sure the size and easy changeable. The aluminum duct can easily compressed and strached, and the aluminum duct can change its shape and keep it.
Features
1 fixed molds fast changing
2 4 7 waves
3 45 degree cross joint
4 enhanced rollers for alu. And s.s
5 automatic cutting system
technical data
model act1-a
tube diameter 75-300mm(3"~24")
aluminum foil thickness 0.06~0.15mm
strip width 35~60mm
feeding speed 45mmin
corrugation number 7 (4 on request)
cutting system saw blade
main power 1.5kw
dimension 1200*1100*1200mm
weight 300kg
