Automatic Bag Given Doypack Packing Machine

Main use:rnit is widely used for the automatic packaging of seasoning materials like relish, refined monosodium glutamate, seeds, sugar, chicken essence, fried food,rngum, pistachios, melon seeds, pet food, snack food, etc.

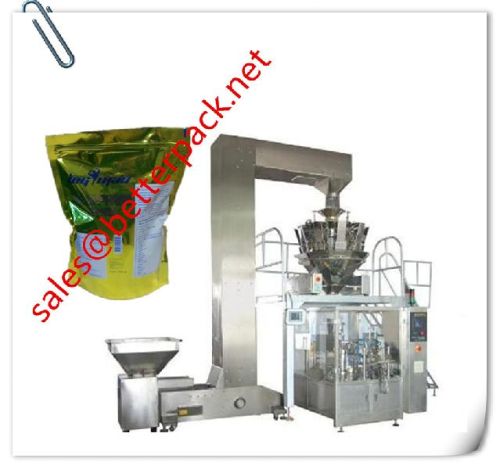

the whole system includern---z shape bucket elevatorrn---10 head combination weigherrn---rotary bag given packing machinern---output conveyor beltrnworking principle: rnsetp 1 bag feedingrnfeed many pouches or bags in the bag magazine, our main bag magazine can move up and down, you can feed bags very easily when it moved down, and when it moved up, there are a mechanical arm with two vacuum caps will take bag up and then transmit it to the mechanical gripper on the rotary table.
step 2 date printing (option)rnstep 3 openingrnto open stand (flat) pouches from top and bottom with two sets vacuum caps.
step 4 fillingrnmeasured its weight or volume by scales.
there are an opening detection device insert into the open bag or pouch to expanding it and detect if it is open or not.
no open no filling no sealingrnstep5 sealingrnto seal the pouch or bag mouth with a couple of heat sealing air bar, the sealing pattern you can option, net or straight linesrnstep 6 forming and outputrnto make the sealing stable and preventing from wrinkling with a couple of cold press, then output the finished production automatically.
specifications:rn1) scaling scope: 5 - 1,500grn2) the styles of packaging bag: portable bags, hand luggage, zipper bags, 4-sidernedging bags, 3-side edging bags, paper bags.
3) speed: 60packs/min (max.)rn4) size of bag: w:200-300mm l:200-450mm/ w:150-260mm l:150-350mm/ w:100-210mm l:100-350mmrn5) total power: 3.5kw, 220/380v,50-60hzrn6) weight accuracy: 1grn7) air source: 0.6m3/min.
