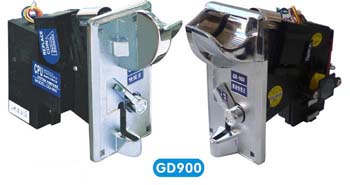

 speedly swift smoothly deposit coins.anti-false coin.anti-string,anti-jam,anti-fishing.support large coin,thick coin,small coin.stable performance

  specifications

  .rating voltage: dc+12v with 20percent discrepancy

 .stand by current: 50ma-55ma   .operating current: 310ma-340ma

 .accepted coin diameter: 18mm-32mm   .accepted coin thickness: 1.2mm-3.0mm

  .size per unit: w14 x d6.5 x h12.5(mm)   .net weight: 0.38kgs

 .packing: 50 pcs/case   .per case: 17.86 kgs   .size per case: w745 x d352 x h275(mm)

  operation:

1.firstly remove the yellow plastic token& replace the coin to the clamp.

2.choose n.o(normal open) or n.c(normal close) in coordination with the machine specification.(normally mario machines should be n.c.gaming machines be n.o )

4.switch to "sw2":

fast: 25ms/short pulse signal (apply to mario machine)

medium: 50ms/medium pulse signal (apply to different machine)

slow: 100ms/long pulse signal

(apply to entertainment machine)

notice: if coin-eating .please adjust the switch.

5.vr turning for sensitivity of coin acceptance: turn clockwise(+)for strict coin selecting anti-clockwise(-)for slack.

6.lines guide of connector:

1)gray wire  red wire        dc+12v

2)white wire       coin signal

3)black wire       ground

4)gray wire        counter
