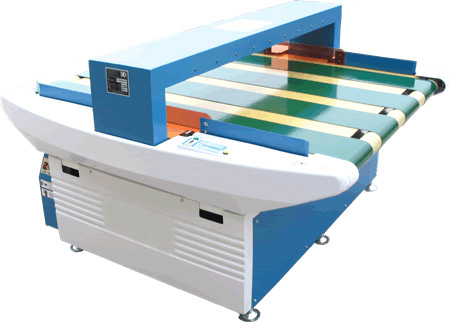

Automatic Belt Conveying Needle Detector

We are offering automatic belt conveying needle detector.
[features]
1.abs-plastic shell.
2.led control panel gives you a convenient operation environment.
3.monitor of detecting sensitivity helps to adjust sensitivity.
4.the conveyor belt is made from nonpoisonous material.
5.real time level display.
6.designed for universal ac power supply (full range).
[purpose]
designed for bed sheet, cloth and down-filled coat use.
[specifications]
model ndc-ax-1200(100mm)
detection method magnetic induction
detection sensitivity 1.0mm steel to samll scissors
detection adjustment 10step
detection width 1200mm
alarm method buzzer,lamp
belt speed 32m/min(50hz),40m/min(60hz)
power source ac100-240v 50-60hz
rated output appr160w
dimension 1650mm(l)*1450mm(w)*900mm(h)
weight appr300kg
[series]
height
detection sensibility
remark
100mm
1.0mm steel to small scissors
standard type
120mm
1.2mm steel to small scissors
option at factory
150mm
1.5mm steel to small scissors
option at factory
200mm
2.0mm steel to small scissors
option at factory
the specification is under standard test condition. The sensitivity depends on the
working condition. We have no responsibility that metal chips come out after detecting
under non-standard condition.
