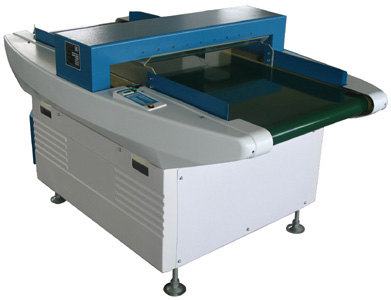

Automatic Belt Conveying Needle Detector - (ndc-a)

We are offering automatic belt conveying needle detector.[purpose]
detecting the metal chips inside the sewing products.
fabric products pharmaceutical products,chemical products,rubber products,food,etc.
[features]
1.cycled,9 pairs of scnsor,excellentanti-disturbance performance.
2.based on led bar displayed control panel.
3.hi accuracy detection locating technology,led indication.
4.lovel setup indication and real-time scnsitivity display.
5.optional conveying mode after alarm.
6.optional automatical restart.
7.reliability mechanical frame design,hi stable during detection.
8.designed for universal ac power supply,switch power supply
[specifications]
model ndc-a(100)
detection method magnetic induction
detection sensitivity 0.8mm steel to samll scissors
detection adjustment 10step
detection width 650mm
alarm method buzzer,lamp
belt speed 32m/min(50hz),40m/min(60hz)
power source ac200-240v 50-60hz
rated output appr140w
dimension 1650mm(l)*1050mm(w)*900mm(h)
weight appr220kg
[series]
height
detection sensibility
remark
100mm
0.8mm steel to small scissors
standard type
120mm
1.0mm steel to small scissors
option at factory
150mm
1.2-1.5mm steel to small scissors
option at factory
200mm
1.5-2.0mm steel to small scissors
option at factory
the specification is under standard test condition. The sensitivity depends on the
working condition. We have no responsibility that metal chips come out after detecting
under non-standard condition.
