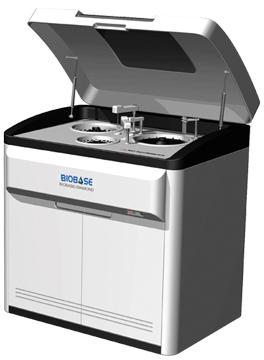

Automatic Biochemistry Analyzer, Brand Name : BIOBASE-C rystal

We are offering automatic biochemistry analyzer (ce,fda).
Model: biobase-crystal
type: discrete, fully automatic
throughput: 300t/h with single reagent
analysis method: end-point, fixed-time (two-point), kinetics, turbidimetry
programming items: programmable for any test items
certification:ce,fda,iso9001,iso14001,iso13485
sample unit:
sample settings:60 sample positions, including calibration, quality control and emergency, primary tubes and serum is available
sample volume: 2ul ~50ul (0.1ul stepping)
sample probe: having liquid level induction function, ensuring the accuracy of adding sample
probe cleaning: automatic washing both interior and exterior
analysis items: analyzing maximally 45 items at the same time
reagent unit:
reagent position: 45 low-temperature refrigerated reagent position
reagent volume: r1:25~300ul, r2:10~150ul (1ul stepping), supporting reagent from different countries
temperature control: continuous 2c~8c cooling within 24 hours
reagent probe: having liquid level induction function, ensuring the accuracy of adding reagent. Inventory checking
probe cleaning: automatic washing both interior and exterior
reaction unit:
reaction time: 10 minutes
cuvettes: 120 independent reaction cuvettes (optical path length 6mm)
stirrer:after injecting reagent and sample, blending immediately
cleaning: automatic water cleaning and drying system
temperature control: 37c±0.1c
system adjustment: system can record the blank value and get more accurate result by deducting blank base value of each cuvette
optical system:
light source: 12v/20w halogen-tungsten lamp, 2000 hours
receiver: 8 imported photo receivers
wavelength range:340,405,450,510,546,578,630,700(three of them can be defined by users),adopting reversed optics
testing wavelength: single and double wavelength test
calibration and qc:
calibration: one-point, multi-point
linear range: 0.000~2.500abs
quality control:inserting quality control at random.6 quality controls can be reached with one item
software:
software: windows 2000 or windows xp or above, sample and easy to operate
emergency function: emergency sample can be placed in the sample tray at any time
data processing: having reaction curve detection and data display function in the whole process
report printing: report format can be modified by user
others: working temperature:15c~30c
humidity: 35%~80%
power supply: ac220v+22v 50hz+1hz
dimension: 1020mm×830mm×1200mm (w*d*h)
weight: 130kg.
