Automatic Block Production Lines

We are offering automatic block production lines.
Automatic block production lines uses two plc systems. The first plc is used to control the sand & cement line and the second plc to control the mixer & press machine line. The operator has to watch the plc systems to make sure all machines are running smooth. Automatic plc systems are good investment in high capacity production plants because they make big reduction in the manpower cost. As and example and in a medium size block production plant, a manual production line require 6 to 7 employees while an automatic production line might require 2 or 3 employees only. Below is a list of our standard automatic block production lines.

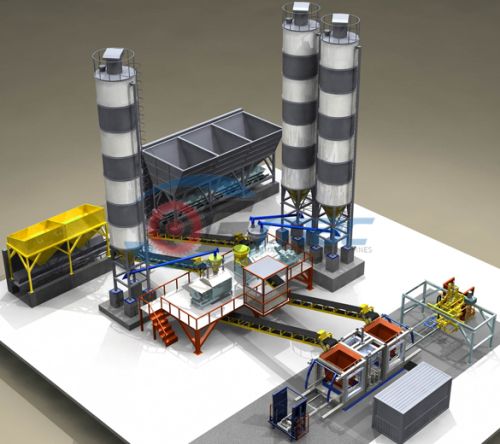

Kb36 is an automatic plant for the production of concrete block & interlock paving brick. It utilizes one kb36 model concrete block & brick press machine, two mortar mixers and two programmable logic control (plc) systems to control the plant operation. This plant uses two conveyor belts to transfer the concrete mortar from the mixers to the press machine; first conveyor belt transfers the main mortar from the big mixer and second conveyor transfers the thin mortar from the small mixer. Thin mortar is used for the top layer in the interlock paving brick and can be colored using a concrete's mortar pigment. Kb36 has the capacity to produce 100 to 120 presses per hour and it is capable of producing an average 3750 wall block (20x40x20 cm) per hour or 1900 p1 interlock brick per hour.
