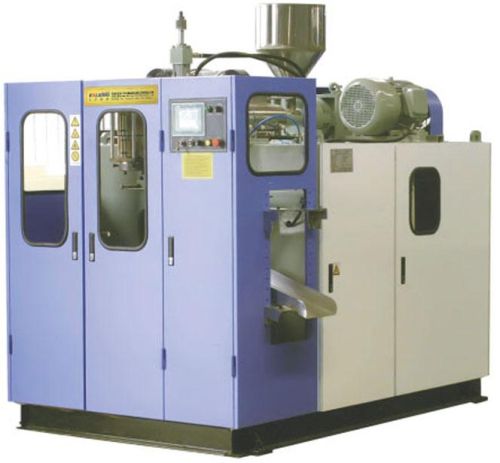

Automatic Blow Moulding Machine - (kal50-2l)

Get Latest Price

MOQ1 Set(s)
Supply TypeManufacturer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Zhangjiagang City Kalsing Machinery Co.,Ltd

Jiangsu Province

View Number

Member Since 13 Years
Nature of Business Manufacturer
Year of Establishment 2008

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

We are offering Automatic Blow Moulding Machine - (kal50-2l) etc. Detailed Product Description
Technicial Parameters
Material: PE.PP.PVC.PA
Max container capacity: 2L
Number of die: 1.2.3.4
Output (Dry Cycle): 1500Pc/hr
Machine dimension(L*W*H): 2.5*1.7*2.3M
Total weight: 3.2ton
Clamping force: 40KN
Platen opening stroke: 128-368mm
Platen size: 300*320mm
Max mould size(W*H): 300*320mm
Mould thickness: 153-300mm
Max drive: 16.5KW
Total power: 22KW
Fan power for screw: 0.14*3KW
Air pressure: 0.6Mpa
Average energy consumption: 12KW
Screw diameter: 50mm
Number of heating zone: 3zone
Extruder heating power: 4.2KW
Extruder driving power: 11KW
Number of heating zone: 3zone
Power of die heating: 1.8KW
Max die pin diameter: 100mm
Center distance of double die: 130mm
Center distance of tri-die: 90mm
Center distance of tetra-die: 60/80mm
