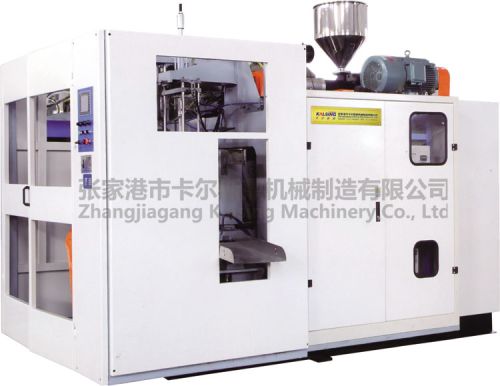

Detailed Product Description
Technicial Parameters
Material: PE.PP.PVC.PA
Max container capacity: 12L
Number of die: 1.2.3.4
Output (Dry Cycle): 900Pc/hr
Machine dimension(L*W*H): 3.8*2.2*2.7M
Total weight: 5.2ton
Clamping force: 120KN
Platen opening stroke: 280-660mm
Platen size: 520*540mm
Max mould size(W*H): 530*520mm
Mould thickness: 210-350mm
Max drive: 37KW
Total power: 58KW
Fan power for screw: 0.14*3KW
Air pressure: 0.6Mpa
Average energy consumption: 20KW
Screw diameter: 70mm
Number of heating zone: 4zone
Extruder heating power: 7.8KW
Extruder driving power: 18.5KW
Number of heating zone: 4zone
Power of die heating: 3KW
Max die pin diameter: 230mm
Center distance of double die: 240mm
Center distance of tri-die: 160mm
Center distance of tetra-die: 110mm
