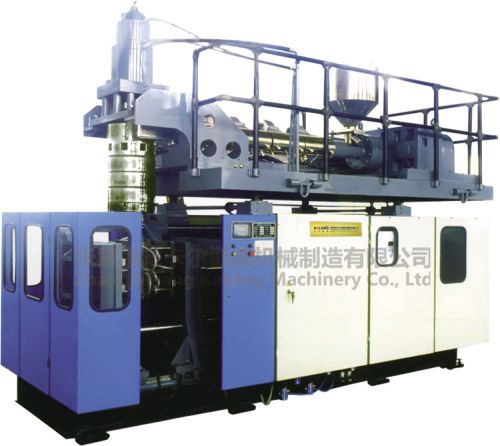

We are offering automatic blow moulding machine.
technicial parameters
material: pe.pp.abs
max container capacity: 30l
output(dry cycle): 360pc/hr
machine dimension(l*w*h): 4.5*2.4*3.5m
total weight: 11ton
clamping force: 180kn
platen opening stroke: 400-900mm
platen size: 760*660mm
max mould size(w*h): 600*700mm
mould thickness: 450-510mm
max drive: 41kw
total power: 52kw
fan power for screw: 0.18*4kw
air pressure: 0.8mpa
average energy consumption: 22kw
motor power for pumps: 11kw
screw diameter: 80mm
screw l/d ratio: 24
number of heating zone: 4zone
extruder heating power: 11.9kw
extruder driving power: 30kw
number of heating zone: 4zone
power of die heating: 15.2kw
max die pin diameter: 250mm
accumulator capacity: 4.4l
