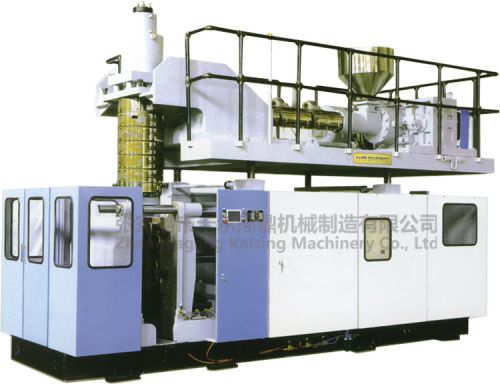

Automatic Blow Moulding Machine - (kls100-90l)

Detailed product description
technicial parameters
material: pe.pp.abs
max container capacity: 90l
output (dry cycle): 360pc/hr
machine dimension(l*w*h): 5.5*2.8*4.5m
total weight: 16ton
clamping force: 430kn
platen opening stroke: 550-1250mm
platen size: 1000*1350mm
max mould size(w*h): 800*1000mm
mould thickness: 360-600mm
max drive: 60kw
total power: 78kw
fan power for screw: 0.18*4kw
air pressure: 0.8mpa
average energy consumption: 35kw
motor power for pumps: 37kw
screw diameter: 100mm
number of heating zone: 4zone
extruder heating power: 24kw
extruder driving power: 45kw
number of heating zone: 4zone
power of die heating: 20kw
max die pin diameter: 430mm
accumulator capacity: 12l.
