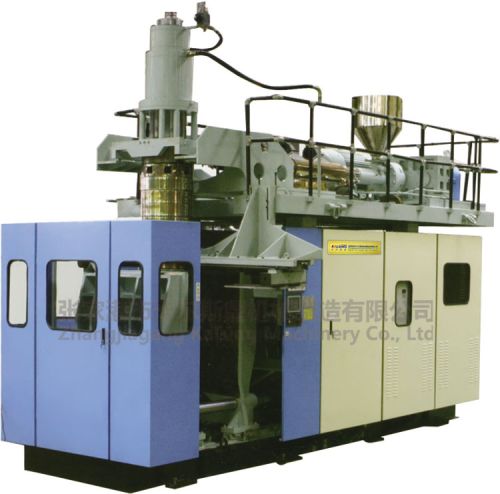

Automatic Blow Moulding Machine - (kls100d-160l)

Detailed product description
technicial parameters
material: pe.pp.abs
max container capacity: 160l
output (dry cycle): 300pc/hr
machine dimension(l*w*h): 5.8*2.6*4.7m
total weight: 20ton
clamping force: 800kn
platen opening stroke: 600-1500mm
platen size: 1250*1600mm
max mould size(w*h): 1000*1500mm
mould thickness: 600-1500mm
max drive: 65kw
total power: 82kw
fan power for screw: 0.18*4kw
air pressure: 0.8mpa
average energy consumption: 40kw
motor power for pumps: 37kw
screw diameter: 100mm
number of heating zone: 4zone
extruder heating power: 30kw
extruder driving power: 55kw
number of heating zone: 5zone
power of die heating: 25kw
max die pin diameter: 520mm
accumulator capacity: 20l.
