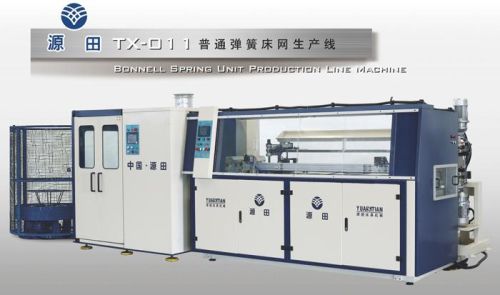

Automatic Bonnell Spring Coiler Zj-3

This is automatic production line of bonnell spring unit. Feed in wire, spring unit comes out, without collecting or ranging springs by hand. Firstly bonnell spring is made of wire, then is sent to certain place by spring conveyor and into the assembling machines by mechanical arms to assemble spring unit. Spring conveyor is with simple structure, accurate positioning servo, and good stability.
technical parameters:
capacity: 6-15 unith (according to size)
coiler speed: 80 pcsmin
power supply: ac380v 50hz
total power: 38kw (max)
air supply: 0.6mp
wire diameter: φ2.0-2.4mm
spring diameter: φ65-90mm
height: 5 turns, 130-180mm
6 turns, 150-180mm
wire bobbin loading: max 1000kg
wire bobbin: min dia. 350mm
max dia. 1000mm
installation area: 8000mmx6000mm.
