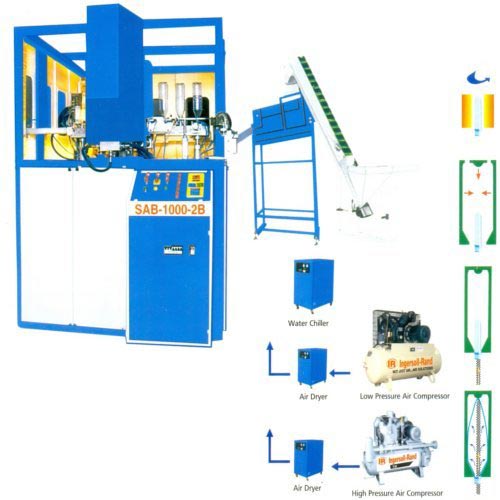

Automatic Bottle Making Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Automatic Bottle Making Machines available with us are designed for operating in the automatic cycle. Automatic Bottle Making Machines offered by us are used for manufacturing bottles and jars of size 25 ml to 25 liters capacity. Our Automatic Bottle Making Machines are made from polyethylene terephatalate (PET) pre-form by thermal processing and stretch blowing. Why Our Automatic Bottle Making Machines? User friendly operationsRobust constructionPrecision engineeredDurable

View More Details

Send Enquiry

Product Details

Specifications

Model	sab-500-ds	sab-1000-2b	sab-2000-2b	sab-5000-jb	sab-20-2b
Product size	50-500ml	50-1000ml	200-2000ml	5000ml.	10ltr. -20ltr.
Product out put	3300-4000 bph	1800-2000 bph	1400-1600 bph	600 bph	150-180 bph
Mould cavity	4 cavity	2 cavity	2 cavity	1 cavity	1 cavity
Neck dia	19-28mm	25-46mm	28-83mm	46-120mm	52mm
Heater power	18kw	18kw	24kw	32kw	32kw
Clamping stroke	150mm	150mm	150mm	200mm	350mm
Working pressure	8-12 kg/cm2	8-12 kg/cm2	8-12 kg/cm2	8-12 kg/cm2	8-12 kg/cm2
Blowing pressure	30-40 kg/cm2	30-40 kg/cm2	30-40 kg/cm2	30-40 kg/cm2	30-40 kg/cm2
Air consumption	0. 8 m3/min	0. 9 m3/min	0. 9 m3/min	1. 1 m3/min	1. 1 m3/min
Machine Blowing	1. 2 m3/min	1. 0 m3/min	1. 0 m3/min	1. 2 m3/min	1. 2 m3/min
Operation	hydro-pneu	hydro-pneu	hydro-pneu	hydro-pneu	hydro-pneu
Area required	2-3 person	2-3 person	2-3 person	2-3 person	2-3 person
For machine	3. 5mtr x 3. 5mtr	4mtr x 4mtr	4mtr x 4mtr	5mtr x 5mtr	5mtr x 6mtr
For utility	3mtr x 5mtr	3mtr x 5mtr	3mtr x 5mtr	3mtr x 5mtr	3mtr x 5mtr
