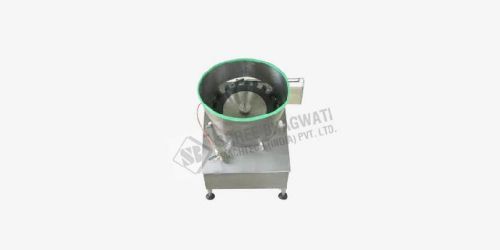

Automatic Bottle Unscrambler

Empty containers are loaded into the easy access bulk hopper. An elevator lifts the empty containers from the bulk hopper and deposits them into the centrifugal feeder. In the feeder containers are moved to the outside of the bowl and drop into the tooling channel. The tooling channel will ensure the container is in proper position to enter the spacing belt. The spacing belt maintains positive control over the containers and ensures properly timed containers enter the orientation belt work area. Spacing belt will determine the overall speed of the machine. As the containers enter the orientation area, gripper belts pull the container and hook will raise the container in upright position if the neck is exposed. Bottom exposed containers will pass through and all reach the pivot block then. Pivot block forces the containers to orient upright. Containers then pass from a gripper belts towards exit belt. Secondary landing plate keeps doing minor adjustments in orientation of the upright containers until it delivered on to the next conveyor.
